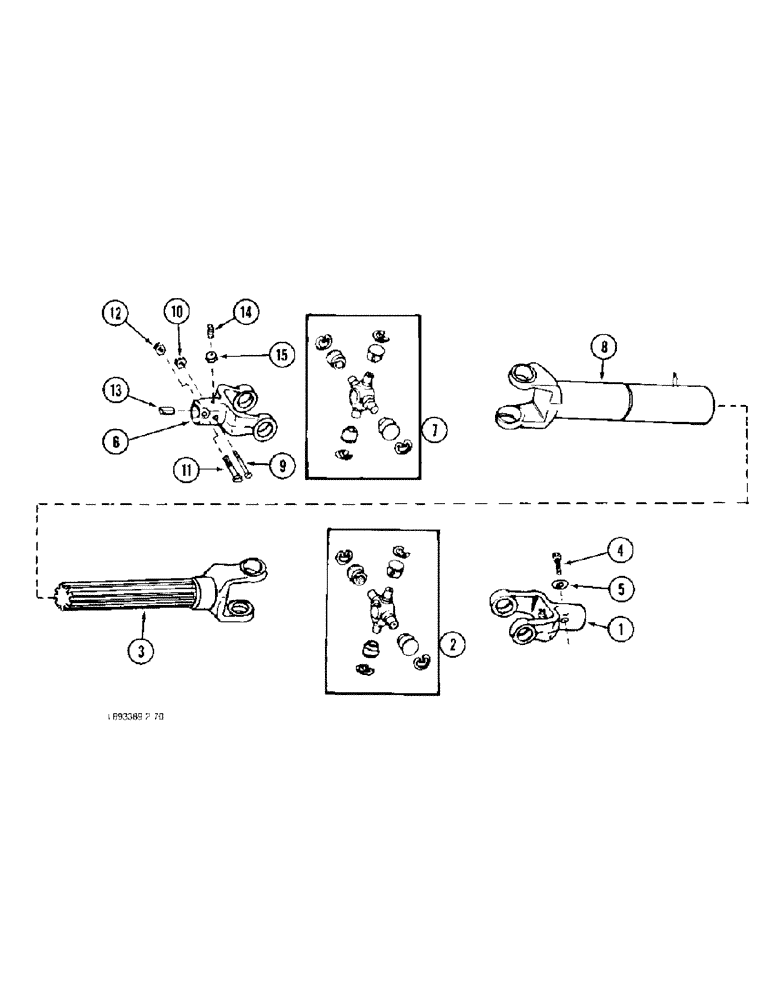

Запчасти Case IH 61MS (46) - DRIVE SHAFT

1346601C1

SHAFT

ASSEMBLY - male

1шт.

1

1346676C1

FORK

YOKE - drive (replaces 1346677C1)

1шт.

2

1346675C1

KIT

- center cross

1шт.

3

NSS

NOT SOLD SEPARAT

SHAFT - male

1шт.

4

414-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

1346602C1

SHAFT

ASSEMBLY - female

1шт.

6

1346677C1

YOKE

- drive

1шт.

7

1346675C1

KIT

- center cross

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - female

1шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

10

131-177

LOCK NUT,3/8"-24, GA

NUT - hex, self-locking, 3/8 inch NF

1шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16 inch NC

1шт.

13

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

1шт.

14

83-13810

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - hex socket head, 3/8 NC x 5/8 inch

1шт.

15

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, 3/8 inch NC

1шт.
