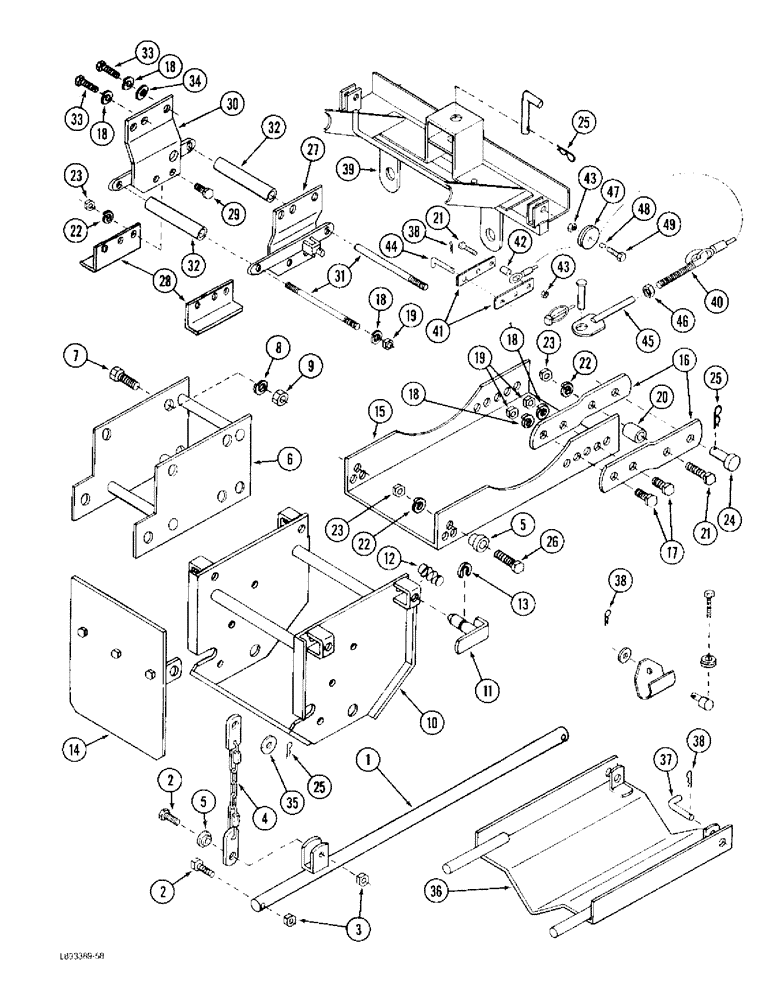

Запчасти Case IH 61MS (40) - LIFT AND MOUNTING BRACKETS

1

1346609C1

ROD

- lift

2шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

4

1346702C1

STRAP

- lift, front

2шт.

5

1958413C1

TRUNNION

- lift strap

4шт.

6

1958467C1

ANCHOR

- mounting, front

1шт.

7

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

1958469C1

FUNNEL

FRAME ASSEMBLY - mounting, front

1шт.

11

1958440C1

PIN

ASSEMBLY - quick release

4шт.

12

1958442CF1

SPRING - lock pin

4шт.

13

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

14

1958471C1

COVER

- front pulley

1шт.

15

1346610C1

PAN

- front pivot

1шт.

16

1958470C1

BRACKET

- pivot pan support

4шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

20

1958468C1

SPACER

- bracket

2шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

22

492-11038

LOCK WASHER,3/8"

6шт.

23

425-106

NUT,3/8"-16, Cl 5

8шт.

24

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

25

79005C1

PIN

- cotter, hair type, 5/32 inch diameter

5шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

27

1958456C1

ANCHOR

- mower lift and stop, left

1шт.

28

1346611C1

LARGE PLATE

ANGLE - extension

2шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

30

1958458C1

ANCHOR

- mower lift and stop, right

1шт.

31

1958459C1

ROD

- threaded

2шт.

32

1958460C1

SUPPORT TUBE

TUBE - lift support

2шт.

33

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex special, 12 MM - 1.25 x 35 MM

4шт.

34

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

35

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

36

1346612C1

STABILIZER

ASSEMBLY - rear

1шт.

37

1346613C1

PIN

- locating

2шт.

38

NSS

NOT SOLD SEPARAT

PIN - hair (See note)

2шт.

39

1346614C1

BRACKET

- rear lift

1шт.

40

1346615C1

CABLE,27", W/ Eyebolt

CABLE ASSEMBLY

2шт.

41

1346616C1

STRAP

- cable mounting

4шт.

42

1346617C1

BUSHING

2шт.

43

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

44

1958230C1

PIN

- locating

2шт.

45

1346618C1

HYDRAULIC LIFT

LINK - lift

2шт.

46

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex jam, 1/2 inch NC

2шт.

47

1346619C1

PULLEY

2шт.

48

1346620C1

PLUG

BUSHING

2шт.

49

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.
