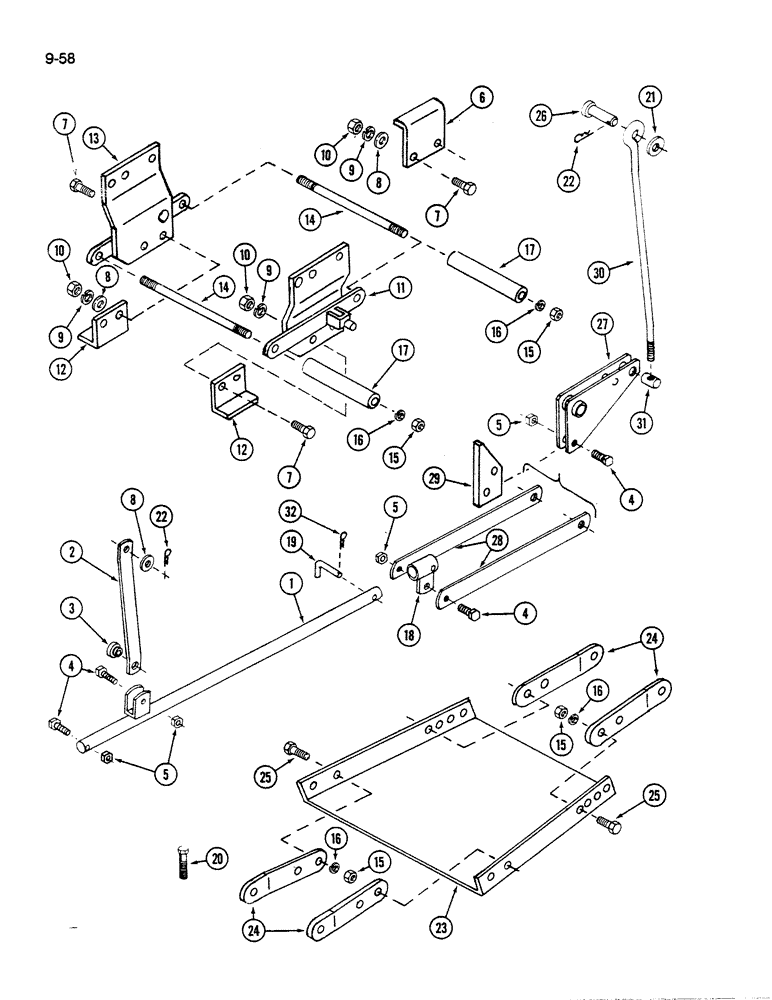

Запчасти Case IH 61MB (9-058) - MOWER LIFT, 61MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958453C1

ROD

- lift

2шт.

2

1973069C1

LINK

STRAP - lift, front

2шт.

3

1958413C1

TRUNNION

- lift strap

2шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

5

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock prevailing torque, 3/8 inch NC

8шт.

6

1958455C1

BRACKET

- rear lift stop

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

11

1958456C1

ANCHOR

- mower lift and stop, left

1шт.

12

1973070C1

LARGE PLATE

PLATE - short, extension

2шт.

13

1958458C1

ANCHOR

- mower lift and stop, right

1шт.

14

1958459C1

ROD

- lift support

2шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

17

1958460C1

SUPPORT TUBE

TUBE - lift support

2шт.

18

1973073C1

BRACKET

- lift rod

2шт.

19

1958230C1

PIN

- locating

2шт.

20

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex, M12 x 1.25 x 35 mm

4шт.

21

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

22

480523R1

HAIR PIN COTTER

4шт.

23

1973071C1

LARGE PLATE

PLATE - rear

1шт.

24

1973072C1

STRAP

- rear plate

4шт.

25

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

26

671034R1

PIN

- clevis, 1/2 x 1-1/2 inch

2шт.

27

1958417C1

BRACKET

- rear lift pivot

2шт.

28

1958464C1

STRAP

- lift

4шт.

Ref #28 - (14") 07/25/96

1шт.

Ref #28A - 1981531C1 Strap 16" 07/25/96

1шт.

29

1958465C1

BAR

- lift extension

2шт.

30

1958466C1

BOLT

- eye

2шт.

31

1958420C1

ROD

- hitch lift swivel

2шт.

32

NSS

NOT SOLD SEPARAT

PIN - hair (See Note)

2шт.
