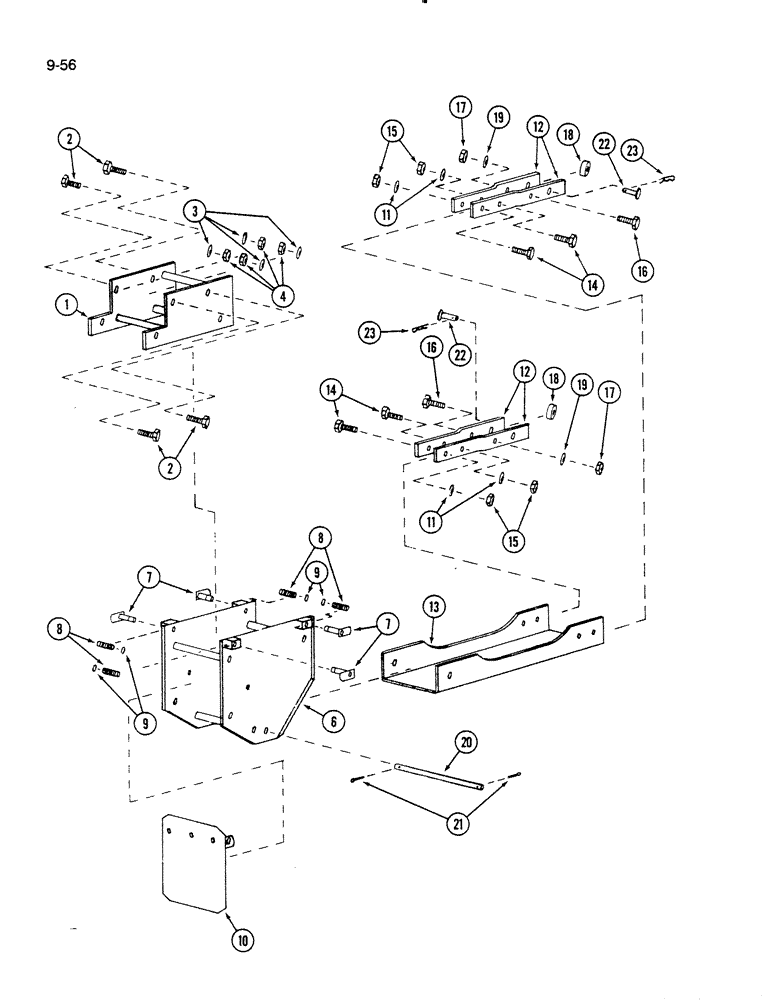

Запчасти Case IH 61MB (9-056) - MOUNTING FRAME, 61MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958467C1

ANCHOR

- front support

1шт.

2

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

129-107

NUT,5/8"-11, G5

4шт.

6

1958469C1

FUNNEL

FRAME ASSEMBLY - mounting, front

1шт.

7

1858440C1

PIN - quick mount

4шт.

8

1958442C1

SPRING

- mounting pin

4шт.

9

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

10

1958471C1

COVER

- front pulley

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

1958470C1

BRACKET

- pivot pan support

4шт.

13

1973068C1

PAN

- front

1шт.

14

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

1958468C1

SPACER

- bracket

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

1958473C1

PIN

- pivot pan

1шт.

21

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

22

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

23

480523R1

HAIR PIN COTTER

2шт.
