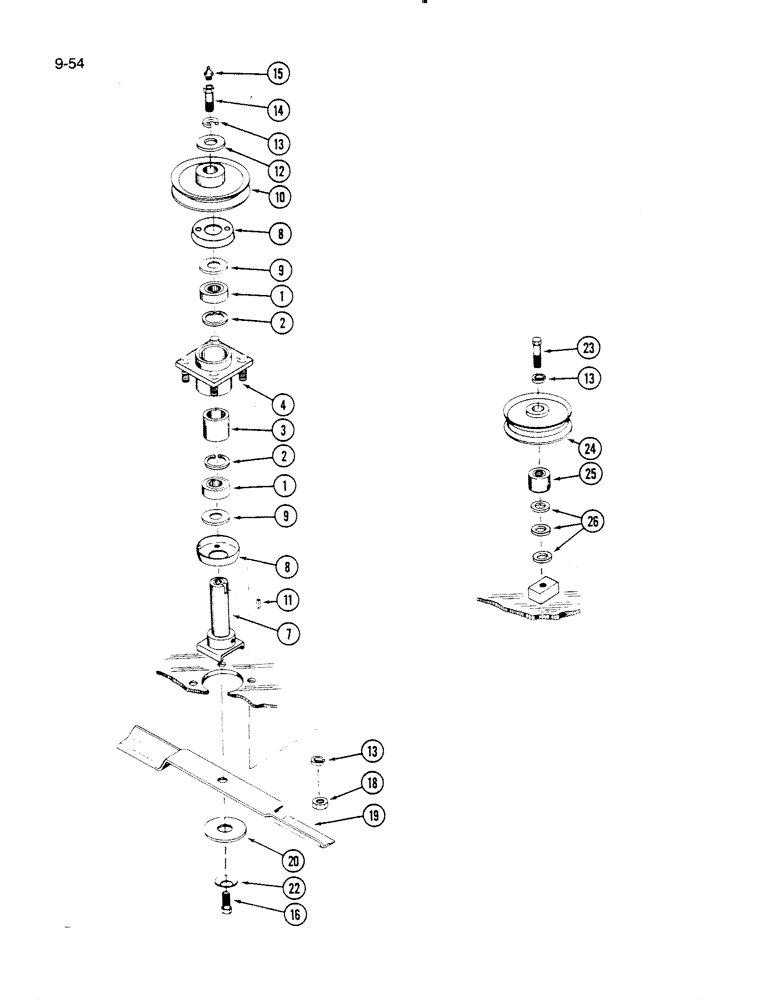

Запчасти Case IH 61MB (9-054) - PULLEYS, BLADES AND SPINDLES, 61MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1954974C1

HOUSING ASSY.

SPINDLE ASSEMBLY - mower blade

3шт.

1

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

2

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

3

1954975C1

SPACER

- bearing

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - spindle (Order 1954974C1)

1шт.

7

1954976C1

SHAFT

- spindle

3шт.

8

1954978C1

CAP

COVER - bearing

6шт.

9

1954979C1

WASHER

- flat

6шт.

10

1958164C1

PULLEY

- spindle, single groove

3шт.

11

1954929C1

BUCKET TOOTH KEY

KEY - pulley, drive

3шт.

12

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 11/64 inch

3шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

14

1958165C1

FITTING,Hex, 1/2" - 20 x 1 1/2"

ASSEMBLY - bolt and grease fitting

3шт.

15

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

16

114-406

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd

3шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

19

1958403C1

KNIFE

BLADE - mower 21" Length

3шт.

20

486801R1

WASHER

- mower blade

3шт.

22

1958169C1

BELLEVILLE WASHER

- serrated, lock, special

3шт.

23

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

24

1958170C1

PULLEY

- idler

1шт.

25

384678R1

SPACER

- idler pulley

1шт.

26

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

3шт.
