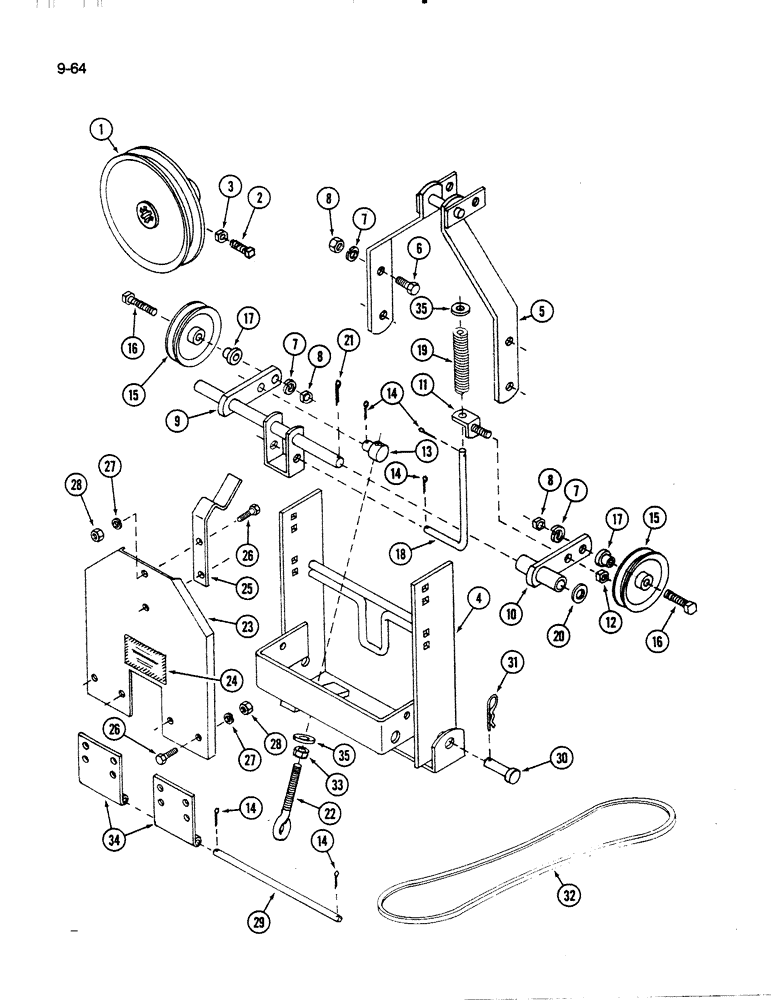

Запчасти Case IH 61MB (9-064) - REAR PTO MOWER DRIVE, 61MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958474C1

PULLEY

- rear PTO (Without draft control)

1шт.

2

126156

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - square head set, 3/8 NC x 3/4 inch

1шт.

3

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8 inch NC

1шт.

4

1958475C1

BRACKET

- rear idler (Without draft control)

1шт.

5

1958476C1

BRACKET

- upper rear idler (Without draft control)

1шт.

6

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

9

1958477C1

BRACKET

- idler pivot, left

1шт.

10

1958478C1

BRACKET

- idler pivot, right

1шт.

11

1958479C1

ANCHOR

- idler rod

1шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock prevailing torque, 3/8 inch NC

1шт.

13

1958480C1

ANCHOR

- adjustment

1шт.

14

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

5шт.

15

1958481C1

PULLEY

- idler, 6-1/4 inch

2шт.

16

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

17

1958497C1

SHAFT

- idler stub

2шт.

18

1958482C1

ROD

- idler spring

1шт.

19

1958487C1

SPRING

- idler tension

1шт.

20

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

1шт.

21

132-344

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22

1958498C1

BOLT

- eye

1шт.

23

1958499C1

COVER

ASSEMBLY - V-belt

1шт.

24

REF

INSTRUCTION

DECAL - danger, keep all shields in place (See page 9-69)

1шт.

25

1958361C1

STRAP

- belt cover latch

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

27

282328C1

WASHER

- flat, 9/32 x 1 x 3/64 inch

6шт.

28

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

29

1954958C1

ROD

- cover mounting

1шт.

30

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

31

NSS

NOT SOLD SEPARAT

PIN - hair (See Note)

1шт.

32

1973074C1

BELT

Drive

1шт.

33

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

34

1958360C1

HINGE

- belt cover

2шт.

35

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.
