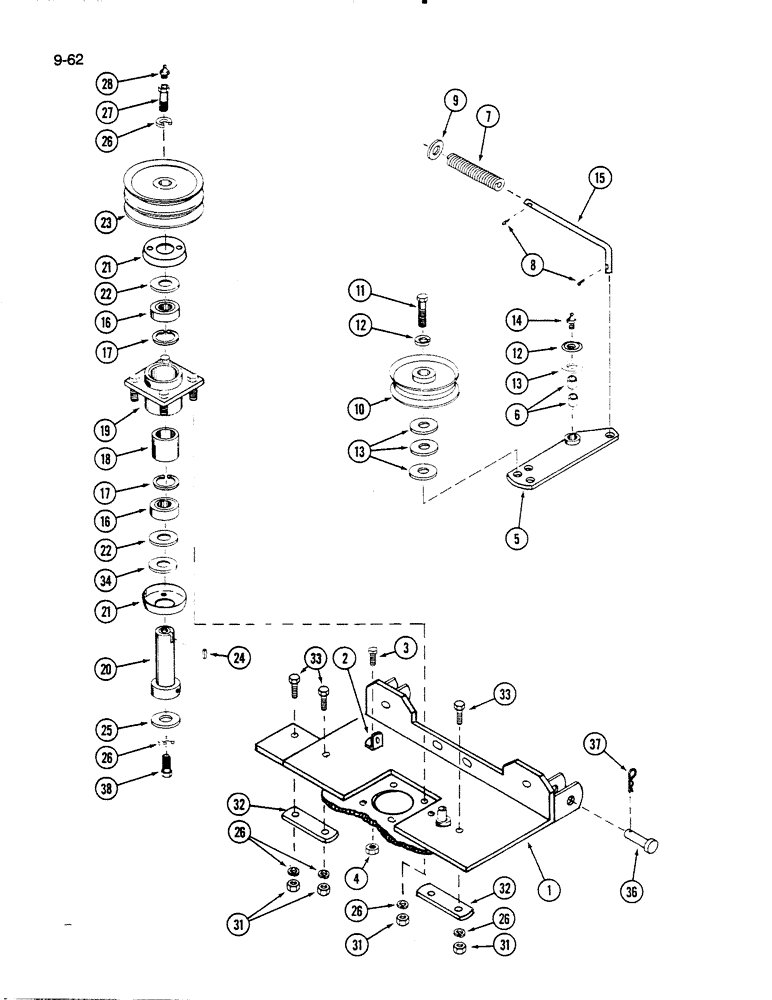

Запчасти Case IH 61MB (9-062) - DRIVE PULLEY AND SPINDLE, 61MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
1958451C1
PLATE
- pulley mounting
1шт.
2
1958179C1
BRACKET
ANCHOR - angle
1шт.
3
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
4
9411655
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC
2шт.
5
1958172C1
ARM
ASSEMBLY - idler
1шт.
6
1958173C1
BUSHING
- idler arm, oilite
2шт.
7
1958487C1
SPRING
- idler rod
1шт.
8
132-336
COTTER PIN,1/8" x 1 1/2"
PIN, SPLIT (COTTER), 1/8" x 1 1/2"
2шт.
9
25710R1
WASHER
- flat, 17/32 x 1-1/16 x 5/64 inch
1шт.
10
1958488C1
PULLEY
- idler
1шт.
11
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
12
1958174C1
SPRING WASHER
- spring
1шт.
13
195-104
WASHER,3/8"
- flat, 7/16 x 1 x 1/16 inch
4шт.
14
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, extra short 1/8 PTF
1шт.
15
1958495C1
ROD
- spring idler
1шт.
1954974C1
HOUSING ASSY.
SPINDLE ASSEMBLY - drive pulley
1шт.
16
295109R91
BALL BEARING
ASSEMBLY - ball
2шт.
17
456736R1
SNAP RING,2.062", Int, #206
Ring, Snap, 2.062", Int, #206
2шт.
18
1954975C1
SPACER
- bearing
1шт.
19
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - spindle (Order 1954974C1)
1шт.
20
1958494C1
SHAFT
- spindle
1шт.
21
1954978C1
CAP
COVER - bearing
2шт.
22
1954979C1
WASHER
- flat
2шт.
23
1958496C1
PULLEY
- double groove
1шт.
24
1954929C1
BUCKET TOOTH KEY
KEY - pulley
1шт.
25
22770R1
WASHER
- flat, 17/32 x 1-1/2 x 11/64 inch
1шт.
26
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
10шт.
27
1958165C1
FITTING,Hex, 1/2" - 20 x 1 1/2"
ASSEMBLY - bolt and grease fitting
1шт.
28
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING - grease, drive type 1/4 inch
1шт.
31
129-105
NUT,Hex, 1/2" - 13, Gr 5
8шт.
32
1958452C1
STRAP
BAR - idler plate backup
2шт.
33
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
34
1954930C1
WASHER
- flat
1шт.
36
671034R1
PIN
- clevis, 1/2 x 1-1/2 inch
2шт.
37
480523R1
HAIR PIN COTTER
2шт.
38
114-406
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5, Full Thd
1шт.
Выбрано товаров: 36
