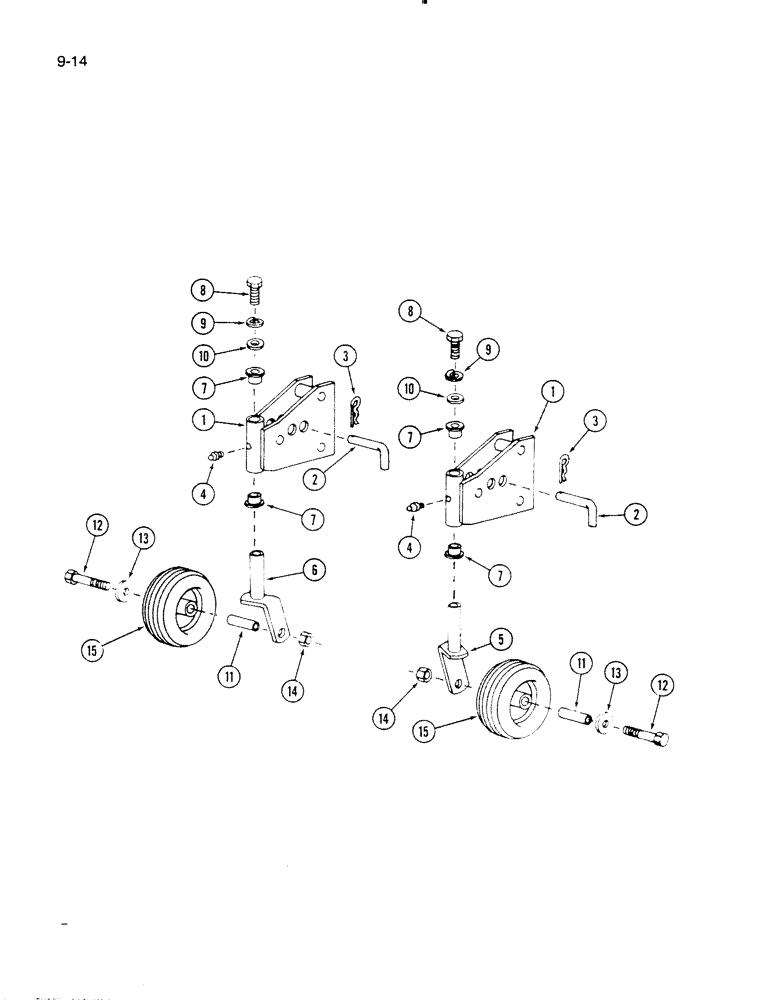

Запчасти Case IH 60RS (9-014) - FRONT GAUGE WHEEL, 60RS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1954993C1

BRACKET

MOUNTING - front caster

2шт.

2

1954990C1

PIN

- wheel height

2шт.

3

NSS

NOT SOLD SEPARAT

PIN - hair (See Note)

2шт.

4

16982R91

FITTING

- grease, 1/4 - 28 inch thread

2шт.

5

1954996C1

ARM

PIVOT - caster wheel, left

1шт.

REF. #5. IF DLR. IS LOOKING FOR A LH PIVOT WITH A 1" DIA. P/N IS 1981520C1.

1шт.

6

1954997C1

ARM

PIVOT - caster wheel, right

1шт.

REF. #6. IF DLR. IS LOOKING FOR A RH PIVOT WITH A 1" DIA. P/N IS 1981521C1.

1шт.

7

1958448C1

BUSHING

- caster pivot

4шт.

REF #7. IF DLR. IS LOOKING FOR A BUSHING WITH 1.003" ID CAN USE P/N 1958184C1.

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

2шт.

11

663393R1

SPACER

- wheel

2шт.

12

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

13

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

14

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

15

1958449C2

WHEEL

KIT - caster, outer

2шт.
