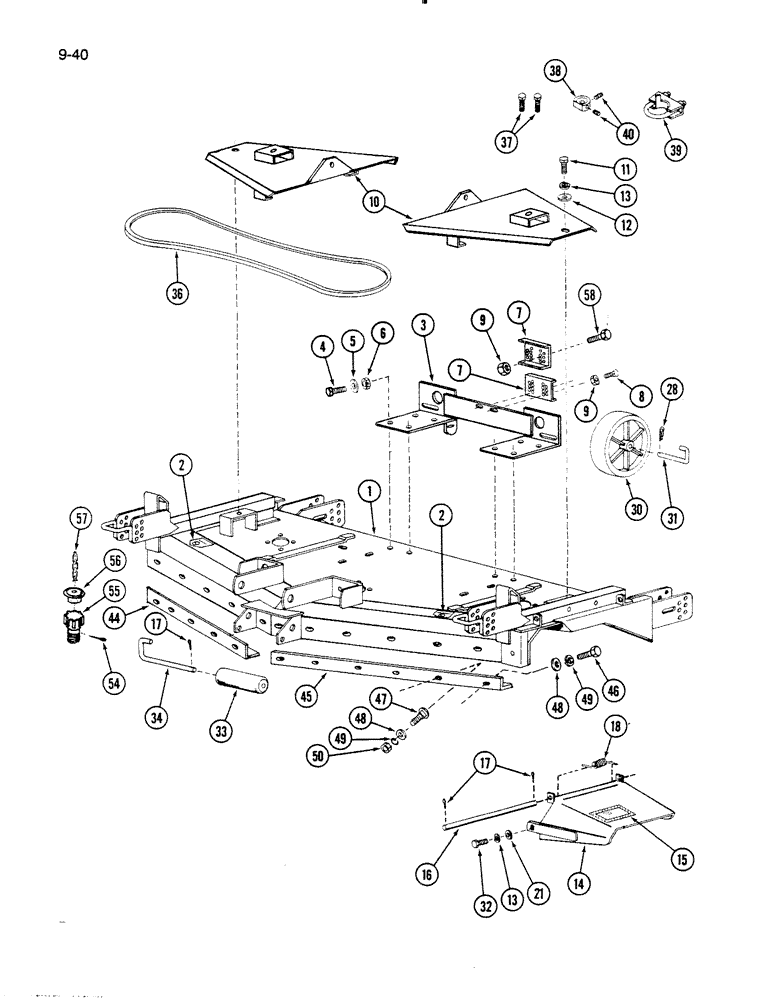

Запчасти Case IH 60MB (9-040) - MOWER DECK AND REAR WHEELS, 60MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1954989C1

FRAME

DECK ASSEMBLY - mower

1шт.

2

REF

INSTRUCTION

DECAL - danger, keep hands and feet away (See page 9-51)

2шт.

3

1973075C1

BRACKET

- rear, deck lift

1шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

6

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock prevailing torque, 1/2 inch NC

4шт.

7

1954992C1

BRACKET

STOP - rear lift

2шт.

8

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

10

1973076C1

COVER

- V-belt

2шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 1/16 inch

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

1954995C1

DEFLECTOR

- grass

1шт.

15

REF

INSTRUCTION

DECAL - danger, keep all shields in place (See page 9-51)

1шт.

16

1954958C1

ROD

- deflector mounting

1шт.

17

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

3шт.

18

1954965C1

SPRING

- deflector

1шт.

21

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 1/16 inch

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - hair (See Note)

2шт.

30

1958408C1

WHEEL

- rear, gauge

2шт.

31

1958410C1

PIN

- gauge wheel

2шт.

32

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

33

489470R1

ROLLER

- mower

2шт.

34

1958450C1

PIN

- roller axle

2шт.

36

1960252C1

BELT,0.66" W x 114.79" L

V-BELT , Drive 0.66" W x 114.79" L

1шт.

37

934942R1

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

Hex, M8 x 40, 8.8, Full Thd

2шт.

38

1954998C1

SPACER

STOP - wheel, right

1шт.

39

1954999C1

STOP

- wheel, left

1шт.

40

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - headless hex socket set, 3/8 NC x 3/8 inch

2шт.

44

1960269C1

ANGLE

- front, 26-1/2 inch long

1шт.

45

1960270C1

ANGLE

- front, 33 inch long

1шт.

46

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

47

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

10шт.

48

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

11шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

11шт.

50

9635082

NUT,5/16" - 18, Gr 5

10шт.

54

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

55

1958444C1

COUPLING

COUPLER - washer hose

1шт.

56

1958445C1

CAP

- wash hose

1шт.

57

1958446C1

CHAIN (AG)

CHAIN - wash hose

1шт.

58

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.
