(9-034) - FRONT DRIVE FRAME AND COVER, 60MB MOWER

Запчасти Case IH 60MB (9-034) - FRONT DRIVE FRAME AND COVER, 60MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

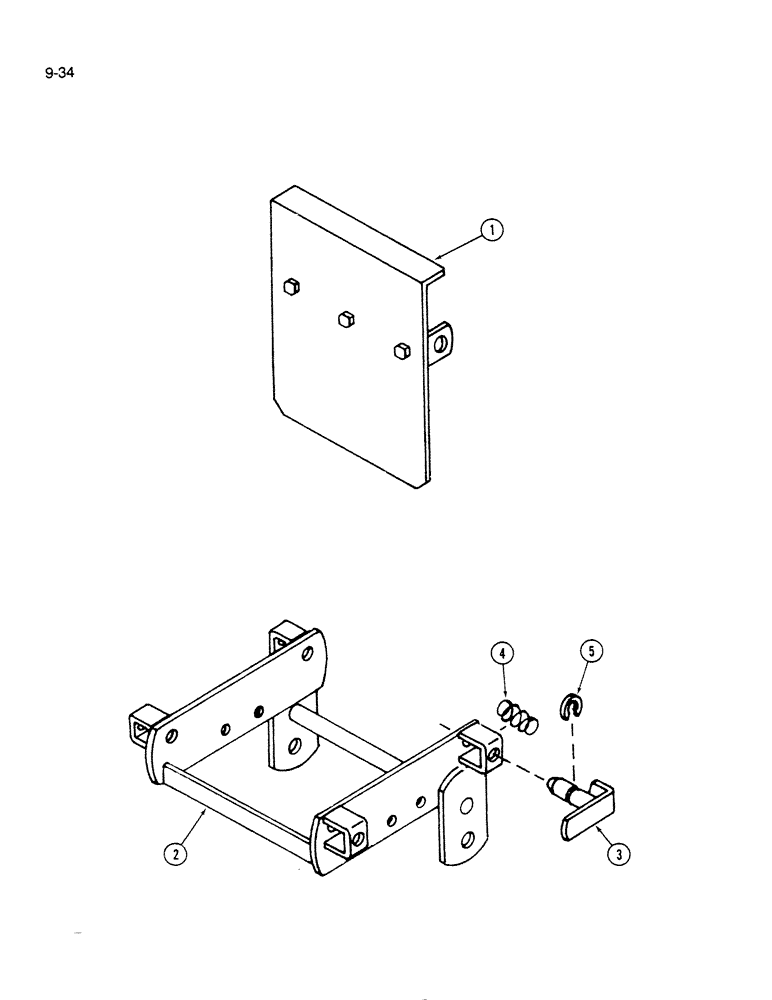

Схема запчастей Case IH 60MB - (9-034) - FRONT DRIVE FRAME AND COVER, 60MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1958489C1

COVER

- front pulley

1шт.

2

1958441C1

FRAME

- front, mounting

1шт.

3

1958440C1

PIN

- quick mount

4шт.

4

1958442C1

SPRING

- mounting pin

4шт.

5

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.
