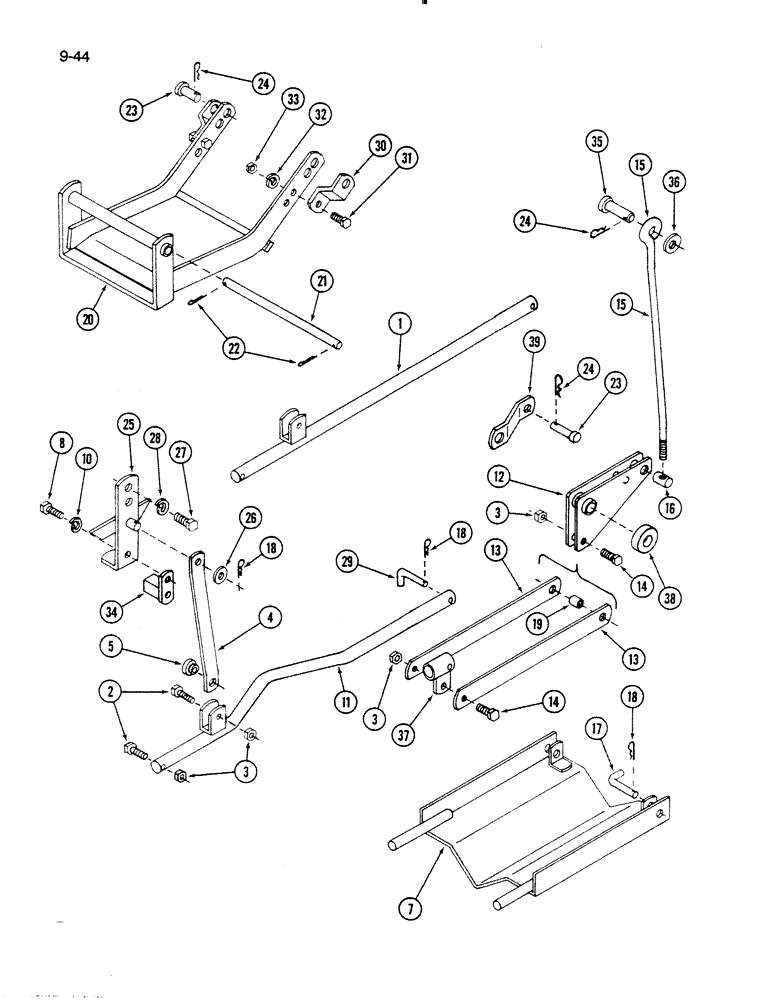

Запчасти Case IH 60MB (9-044) - MOWER LIFT, 60MB MOWER (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
1958411C1
ROD
- lift, right
1шт.
2
113-209
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
3
9411655
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC
8шт.
4
1958412C1
STRAP
- front lift bar
2шт.
5
1958413C1
TRUNNION
- lift strap
2шт.
7
1973077C1
LARGE PLATE
PLATE - rear deck locater
1шт.
8
113-221
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
- hex, 3/8 NC x 3/4 inch
2шт.
10
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
11
1958416C1
ROD
- lift, left
1шт.
12
1958417C1
BRACKET
- rear lift pivot
2шт.
13
1958418C1
STRAP
- lift link
2шт.
14
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
4шт.
15
1958419C1
BOLT
- hitch connecting
2шт.
16
1958420C1
ROD
- hitch lift swivel
2шт.
17
1958230C1
PIN
- locating
4шт.
18
NSS
NOT SOLD SEPARAT
PIN - hair (See Note)
4шт.
19
568395R1
SPACER,5/8" Tube x 5/8"
- 13/32 ID x 5/8 OD x 9/16 inch long
2шт.
20
1958421C1
PIVOT
- front mounting
1шт.
21
1958422C1
ROD
- pin
1шт.
22
132-317
COTTER PIN,3/16" x 2"
PIN, SPLIT (COTTER), 3/16" x 2"
2шт.
23
22754R1
CLEVIS PIN,5/8" x 1.844"
PIN, CLEVIS, 5/8" x 1.844"
4шт.
24
480523R1
HAIR PIN COTTER
6шт.
25
1958423C1
SUPPORT
ANCHOR - lift
2шт.
26
25710R1
WASHER
- flat, 17/32 x 1-1/16 x 5/64 inch
2шт.
27
1958424C1
BOLT,Hex, M12 x 1.25 x 35mm
- hex, M12 x 1.25 x 35 mm
4шт.
28
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
29
1958230C1
PIN
- locating
2шт.
30
1958425C1
BRACKET
- clevis
2шт.
31
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
2шт.
32
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
33
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
34
1958426C1
EXTENSION
STOP - extension
2шт.
35
28196R1
SPLIT PIN/SAFETY PIN
PIN - clevis, 5/8 x 2-1/4 inch
2шт.
36
25976R1
WASHER,21/32" x 1 5/16" x .150", HDN
- flat, 21/32 x 1-5/16 x 5/64 inch
2шт.
37
1973073C1
BRACKET
- lift rod
2шт.
38
568675R1
SPACER,1 1/8" Tube x 1/2"
- 29/32 ID x 1-1/8 OD x 1/2 inch long
2шт.
39
1973078C1
BRACKET
- sway support extension
2шт.
Выбрано товаров: 37
