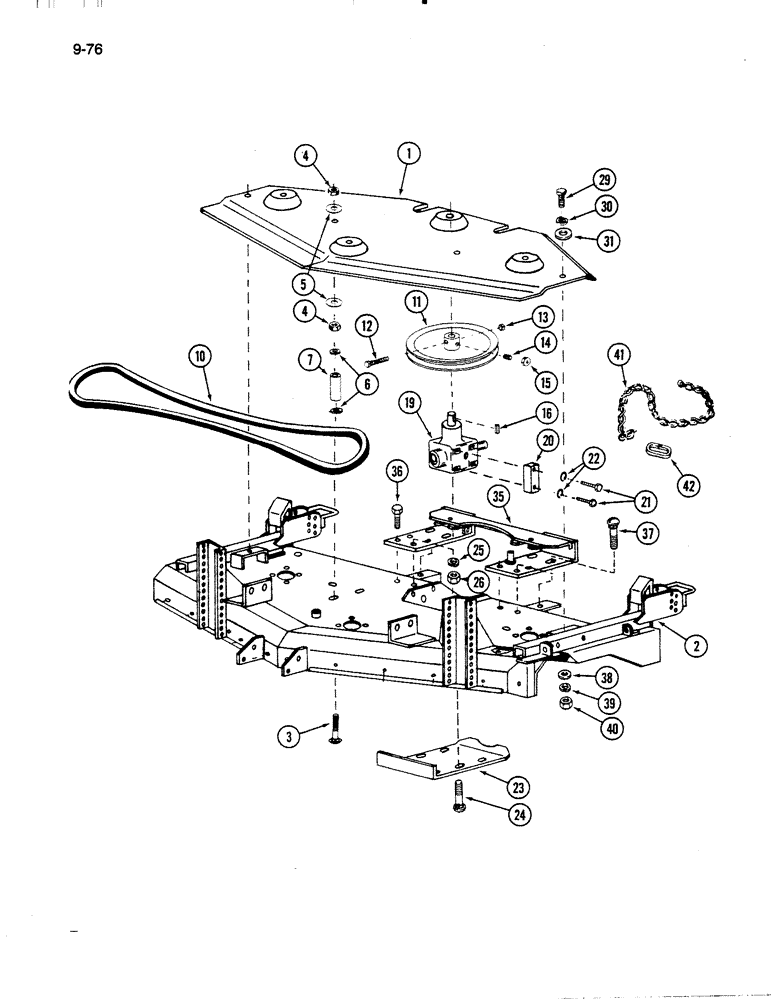

Запчасти Case IH 60FS (9-076) - BELT COVER AND DRIVE, 60FS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1973205C1

COVER

- belt, drive

1шт.

2

REF

INSTRUCTION

DECK - mower, See page 9-75

1шт.

3

27455R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 3-1/2 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

5

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

4шт.

6

120388

- flat, 7/16 x 1 x 1/16 inch

4шт.

7

208665C1

SPACER

- cover

2шт.

10

1960262C1

BELT,0.66" W x 135.99" L

V-BELT , Drive, Mower 0.66" W x 135.99" L

1шт.

11

1958368C1

PULLEY

- drive, belt

1шт.

12

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

14

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - slot headless set, 3/8 NC x 1/2 inch

1шт.

15

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

16

1954929C1

BUCKET TOOTH KEY

KEY - square, gear box shaft

1шт.

19

REF

INSTRUCTION

GEARBOX ASSEMBLY - drive, See page 9-73

1шт.

20

1958367C1

SPACER

- gearbox

4шт.

21

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

8шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

23

1958370C1

LARGE PLATE

PLATE - skid, gearbox

1шт.

24

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

26

120376

NUT,5/16"-18, G5

6шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

2шт.

35

1978621C1

SUPPORT

BRACKET - idler, lift

1шт.

36

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

37

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

38

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

6шт.

39

192-28

WASHER - lock, 1/2 inch

6шт.

40

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

41

468032R1

CHAIN (AG)

CHAIN - deck, 30 inch

2шт.

42

1958376C1

LINK

- chain, quick

2шт.
