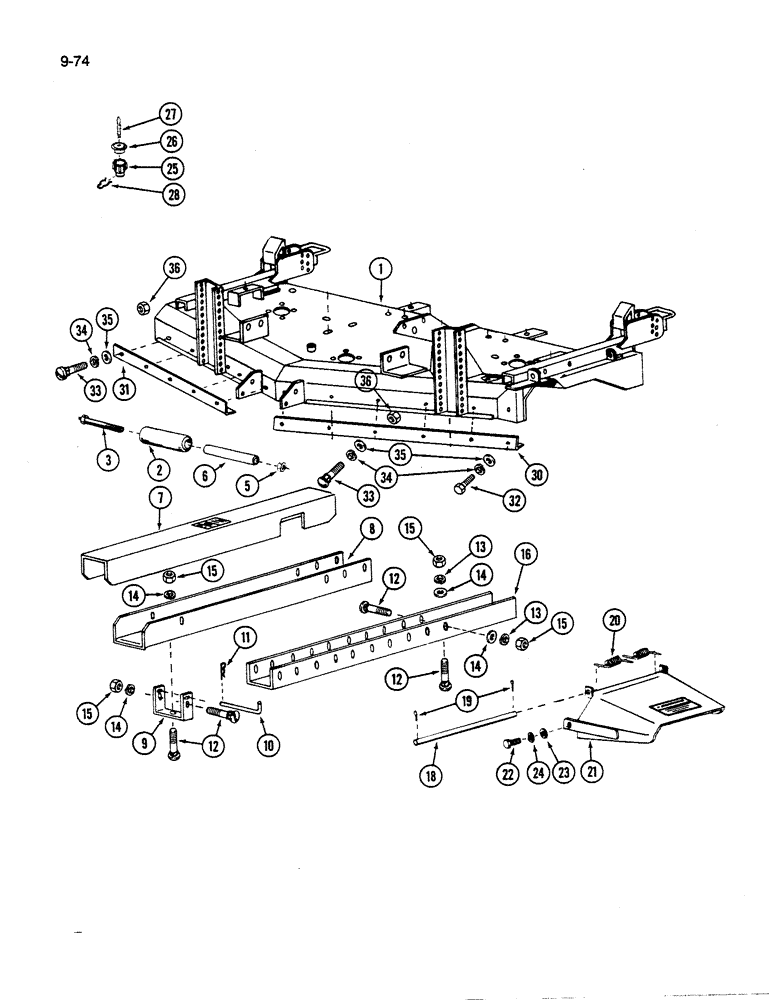

Запчасти Case IH 60FS (9-074) - MOWER DECK, 60FS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT
№
Артикул
Название
Примечание
Количество
1
1958365C1
HOUSING
DECK - mower (with decal)
1шт.
2
1978614C1
ROLLER
- mower
1шт.
3
1978615C1
BOLT,Hex, 1/2" - 13 x 7 1/2"
ASSEMBLY - pivot, roller
1шт.
5
9413967
LOCK NUT,1/2"-13, GB
NUT - hex lock, 1/2 inch NC
1шт.
6
1978616C1
SPACER
- roll
1шт.
7
1958375C1
COVER
- PTO
1шт.
8
1958372C1
SHIELD
- drive shaft
1шт.
9
1958373C1
SUPPORT
BRACKET - shield
1шт.
10
1960264C1
PIN
- locating
1шт.
11
407207R1
CLIP
PIN - cotter, hair type (Package of 50)
1шт.
12
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT - round head square neck, 5/16 NC x 3/4 inch
9шт.
13
446363
WASHER,5/16"
- flat, 3/8 x 7/8 x 1/16 inch
9шт.
14
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 1/16 inch) 3/8"
6шт.
15
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- hex flange lock, 5/16 inch NC
9шт.
16
1958374C1
SHIELD
GUARD - shaft
1шт.
18
1954958C1
ROD
- mounting, deflector
1шт.
19
120-366
PIN - cotter, 1/8 x 1-1/4 inch
2шт.
20
1954965C1
SPRING
- tension, deflector
2шт.
21
1954995C1
DEFLECTOR
- grass
1шт.
22
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
23
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 1/16 inch) 3/8"
1шт.
24
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
25
1958444C1
COUPLING
COUPLER - hose, wash
1шт.
26
1958445C1
CAP
- coupler
1шт.
27
1958446C1
CHAIN (AG)
CHAIN - hose
1шт.
28
1960263C1
PIN
- cotter, hair type
1шт.
30
1960270C1
ANGLE
- front, 33 inch
1шт.
31
1960269C1
ANGLE
- front, 26-1/2 inch
1шт.
32
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
33
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT - round head square neck, 5/16 NC x 3/4 inch
10шт.
34
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
11шт.
35
446363
WASHER,5/16"
- flat, 3/8 x 7/8 x 1/16 inch
11шт.
36
120376
NUT,5/16"-18, G5
10шт.
Выбрано товаров: 33
