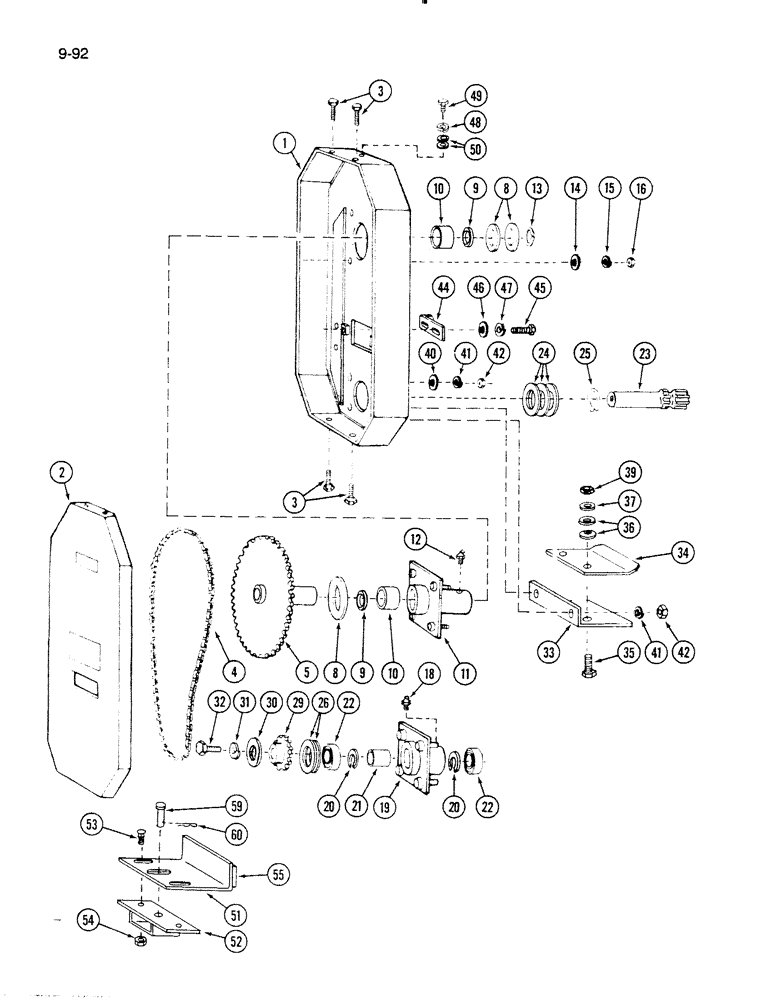

Запчасти Case IH 60FS (9-092) - DRIVE BOX, 60FS MOWER, 235 AND 235H TRACTOR (03) - CHASSIS/MOUNTED EQUIPMENT

1

1978604C1

HOUSING

- drive

1шт.

2

1978610C1

COVER ASSY

COVER - housing (with decal)

1шт.

3

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - hex head tap, 5/16 NC x 3/4 inch

4шт.

4

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive, order 61 links from bulk chain 1791D and 1 connecting link 1310D

1шт.

5

1960504C1

SPROCKET ASSY.

SPROCKET - drive, 48 tooth

1шт.

8

1960505C1

WASHER

- sprocket

3шт.

9

1960503C1

OIL SEAL

- grease

2шт.

10

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

ASSEMBLY - needle

2шт.

11

1960502C1

HOUSING

- bearing

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight short, 1/8 inch PT

1шт.

13

21269R1

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

14

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

18

16982R91

FITTING

- lube, 1/4 inch

1шт.

19

1978606C1

HOUSING

- bearing

1шт.

20

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

21

1978607C1

SPACER

- bearing

1шт.

22

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

23

1978608C1

SHAFT

- splined

1шт.

24

1954930C1

WASHER

- pivot, 5/32 inch thick

3шт.

25

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

26

1954979C1

WASHER

- spacer, bearing

2шт.

29

1960507C1

SPROCKET ASSY.

SPROCKET - chain

1шт.

30

1960508C1

WASHER

- thrust

1шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

- hex, 1/2 NF x 1-1/2 inch

1шт.

33

1978609C1

COVER

- shaft

1шт.

34

1960513C1

CLIP

- locating

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

36

1958174C1

SPRING WASHER

- spring

4шт.

37

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

2шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

40

120396

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

40

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

41

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

44

1960510C1

SUPPORT

- locator, housing

2шт.

45

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

46

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

4шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

48

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

49

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

50

16559R1

WASHER,1/4"

- flat, 17/64 x 5/8 x 1/32 inch

2шт.

51

1978611C1

BRACKET

- locator

1шт.

52

1978612C1

BRACKET

- drawbar

1шт.

53

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

54

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

55

1958352C1

PAD

MOULDING - bracket

2шт.

59

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

60

480523R1

HAIR PIN COTTER

1шт.
