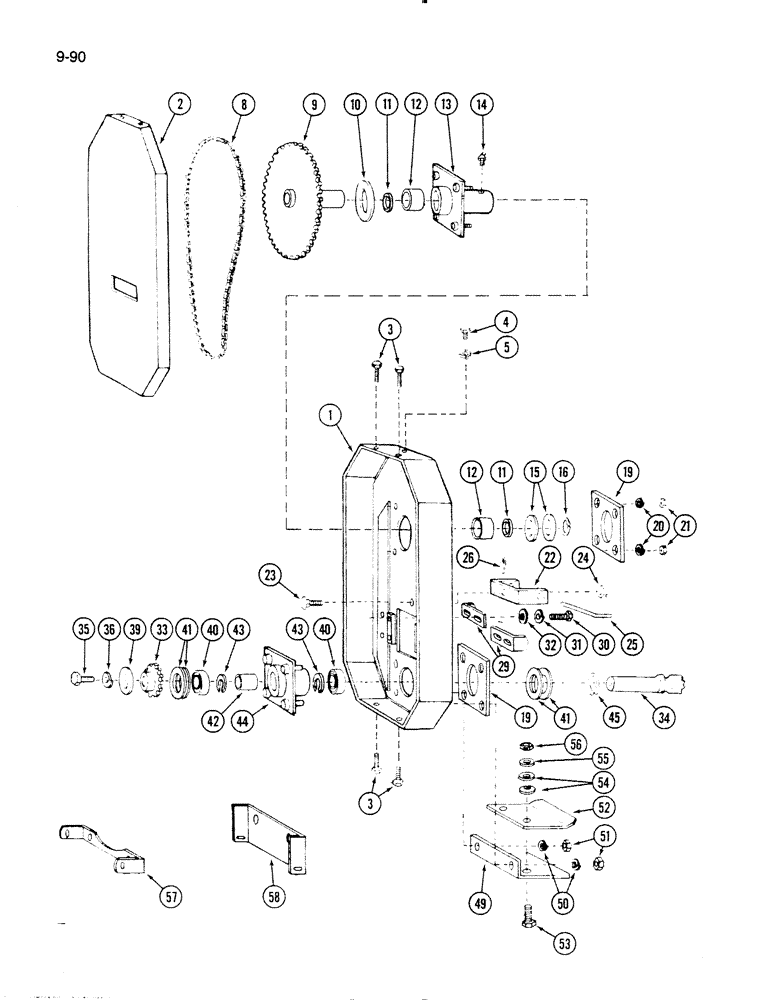

Запчасти Case IH 60FS (9-090) - DRIVE BOX, 60FS MOWER, 245 AND 255 TRACTOR (03) - CHASSIS/MOUNTED EQUIPMENT

1

1960501C1

HOUSING

- drive

1шт.

2

1960514C1

COVER

- housing (with decal)

1шт.

3

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - hex head tap, 5/16 NC x 3/4 inch

4шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

8

828675C91

CHAIN (AG)

CHAIN ASSEMBLY - drive, 70 link No. 50

1шт.

9

1960504C1

SPROCKET ASSY.

SPROCKET - drive, 48 tooth

1шт.

10

1960505C1

WASHER

- sprocket

1шт.

11

1960503C1

OIL SEAL

- grease

2шт.

12

360665R91

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

ASSEMBLY - needle

2шт.

13

1960502C1

HOUSING

- bearing

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight short, 1/8 inch PT

1шт.

15

1960505C1

WASHER

- sprocket

3шт.

16

21269R1

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

19

1960516C1

LARGE PLATE

PLATE - support, spindle

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

22

1960511C1

SUPPORT

BRACKET - mounting, housing

1шт.

23

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

24

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

25

1960512C1

PIN

- locating

1шт.

26

407207R1

CLIP

PIN - hair, Package of 50

1шт.

29

1960510C1

SUPPORT

- locator, housing

2шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

4шт.

33

1960507C1

SPROCKET ASSY.

SPROCKET - chain

1шт.

34

1960506C1

SHAFT

- splined

1шт.

35

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

- hex, 1/2 NF x 1-1/2 inch

1шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

39

1960508C1

WASHER

- thrust

1шт.

40

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

41

1954979C1

WASHER

SPACER - washer, bearing

4шт.

42

1960479C1

SPACER

- bearing

1шт.

43

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

44

1960519C1

HOUSING

- bearing

1шт.

45

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

49

1960509C1

COVER

- shaft

1шт.

50

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

51

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

52

1960513C1

CLIP

- locating

1шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

54

1958174C1

SPRING WASHER

- spring

4шт.

55

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

2шт.

56

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

57

1960517C1

SUPPORT

- housing

1шт.

58

1960518C1

SUPPORT

BRACKET - anchor, housing

1шт.
