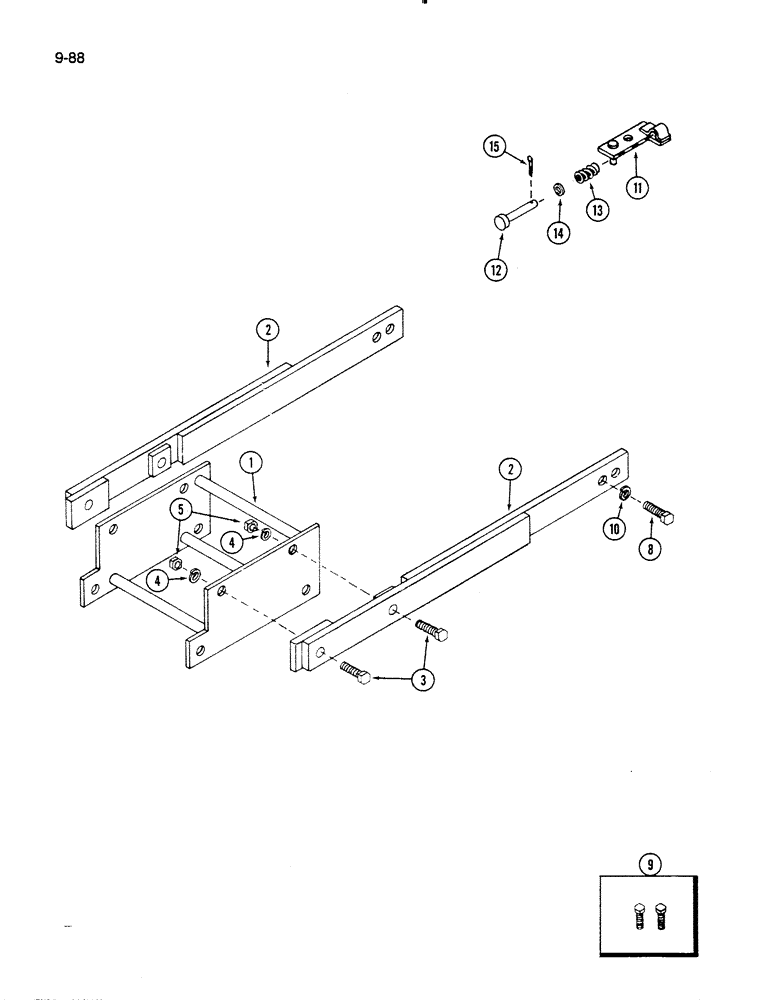

Запчасти Case IH 60FS (9-088) - MOUNTING KIT, 60FS MOWER, 245 AND 255 TRACTOR (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958467C1

ANCHOR

SUPPORT - mounting, front

1шт.

2

1973034C1

SUPPORT

RAIL - side, support

2шт.

3

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

4шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

129-107

NUT,5/8"-11, G5

4шт.

8

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- mounting, frame

2шт.

9

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- mounting (4 wheel drive tractor)

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

11

1958362C1

BRACKET

- lift control

1шт.

12

1958363C1

PIN

- clevis

1шт.

13

1958364C1

SPRING

- tension

1шт.

14

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.
