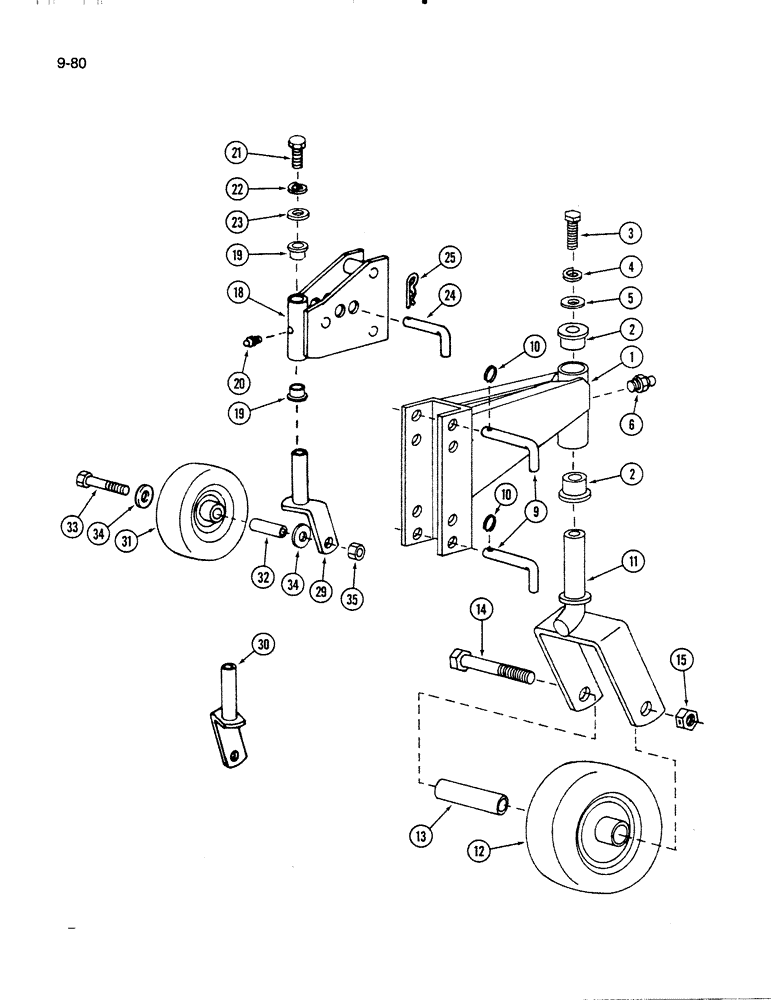

Запчасти Case IH 60FS (9-080) - CASTER WHEELS, 60FS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958183C1

SUPPORT

- wheel, main

2шт.

2

1958184C1

BUSHING

- pivot, support

4шт.

3

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

6

16982R91

FITTING

- lube, 1/4 inch

2шт.

9

1958192C1

PIN

- locating

4шт.

10

1958193C1

CLIP

- spring

4шт.

11

1958187C1

BRACKET

FORK - wheel

2шт.

12

1973206C1

RIM

WHEEL ASSEMBLY - caster, main

2шт.

13

663393R1

SPACER

BUSHING - wheel

2шт.

14

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

18

1954993C1

BRACKET

SUPPORT - wheel, outer

2шт.

19

1958448C1

BUSHING

- pivot, support

4шт.

20

16982R91

FITTING

- lube, 1/4 inch

2шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

24

1954990C1

PIN

- support, wheel

2шт.

25

407207R1

CLIP

PIN - hair, Package of 50

2шт.

29

1954997C1

ARM

FORK - caster, right

1шт.

30

1954996C1

ARM

FORK - caster, left

1шт.

31

1958449C2

WHEEL

KIT - caster, outer

2шт.

32

1973315C1

SPACER

- wheel

2шт.

33

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

2шт.

34

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

4шт.

35

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

2шт.
