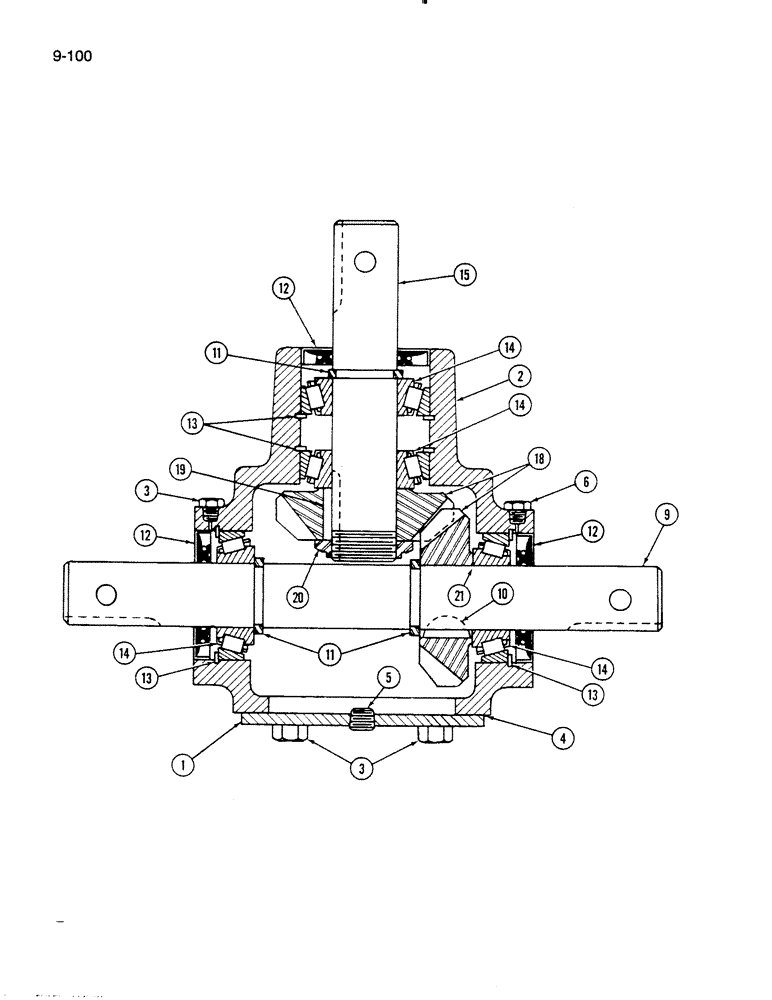

Запчасти Case IH 60FMS (9-100) - GEARBOX ASSEMBLY, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1973199C1

GEARBOX ASSY

GEARBOX ASSEMBLY - mower

1шт.

1

1973042C1

COVER

- housing

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gearbox

1шт.

3

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

4

1973051C1

GASKET

- cover

1шт.

5

444688

PLUG

- hex socket pipe, 1/8 inch PT

4шт.

6

1976597C1

PLUG

- vent

1шт.

9

1973048C1

SHAFT

- output

1шт.

10

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

- 1/4 x 3/4 inch, Woodruff 91

1шт.

11

1958290C1

RING, SNAP

RING - snap, retaining

3шт.

12

1973050C1

SEAL

- oil

3шт.

13

1973045C1

RING

- snap, retaining

4шт.

14

1973044C1

BEARING ASSY

BEARING ASSEMBLY - cup and cone

4шт.

15

1973047C1

SHAFT

- input

1шт.

18

1973043C1

GEAR

- bevel

2шт.

19

1973049C1

BUCKET TOOTH KEY

KEY - square, gear

1шт.

20

1973046C1

NUT

- stake, hex

1шт.

21

1973052C1

SHIM

- bearing

1шт.
