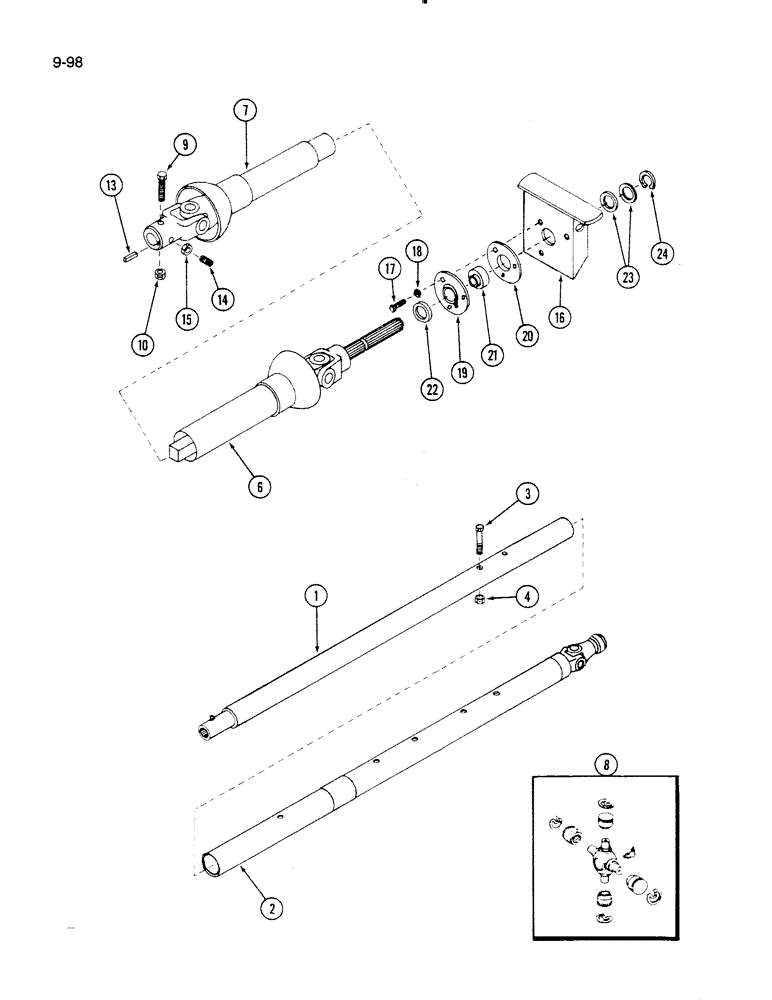

Запчасти Case IH 60FMS (9-098) - PTO DRIVE SHAFT, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1960520C1

SHAFT

- half, male drive

1шт.

Note - 1981543C1 Yoke for Driveshaft (Ref #1) 07/25/96

1шт.

2

1960521C1

SHAFT

- half, female drive

1шт.

3

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

4

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

6

1978618C1

SHAFT

ASSEMBLY - slip, male

1шт.

7

1978617C1

SHAFT

ASSEMBLY - slip, female

1шт.

8

1958302C1

BEARING

REPAIR KIT - bearing, joint (Repairs ref 2, 6 and 7)

1шт.

9

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

10

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

13

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

1шт.

14

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - slot headless set, 3/8 NC x 1/2 inch

1шт.

15

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

16

1976308C1

SUPPORT

BRACKET - support, shaft

1шт.

17

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

3шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

19

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE ASSEMBLY - bearing (with lube fitting)

1шт.

20

1976427C1

FLANGE

- bearing

1шт.

21

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING ASSEMBLY - support

1шт.

22

1954930C1

WASHER

- pivot, 5/32 inch thick

1шт.

23

1954979C1

WASHER

- pivot, 1/32 inch thick

3шт.

24

515440R1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.
