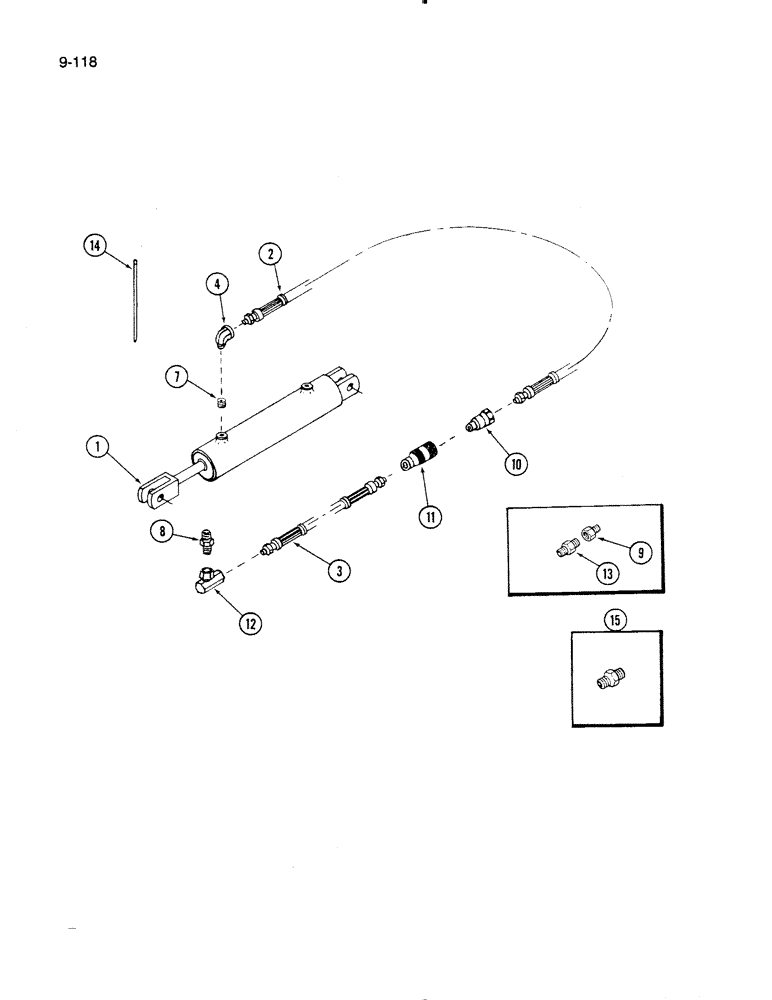

Запчасти Case IH 60FMS (9-118) - LIFT HYDRAULICS, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958335C1

CYLINDER

ASSEMBLY - lift

1шт.

2

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

6.35 mm ID x 2285.00 mm

1шт.

3

1336714C1

HYDRAULIC HOSE

HOSE - hydraulic, 14-3/4 inch long

1шт.

4

1958336C1

ELBOW

- 90 degree, 1/4 inch PT

1шт.

7

1958337C1

ORIFICE

- flow, hydraulic

1шт.

8

443979

HYD CONNECTOR

NIPPLE - pipe, 1/4 inch PT

1шт.

9

1960272C1

FITTING

ADAPTER - male straight

1шт.

10

166123C91

COUPLING

COUPLER ASSEMBLY - male

1шт.

11

166122C92

ASSEMBLY

COUPLER ASSEMBLY - female

1шт.

12

1960241C1

ELBOW

ASSEMBLY - 90 degree swivel

1шт.

13

443991

PIPE

NIPPLE - pipe, 3/8 to 1/4 inch PT

1шт.

14

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

3шт.

15

9402708

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

CONNECTOR - straight, 3/8 inch tube

4шт.
