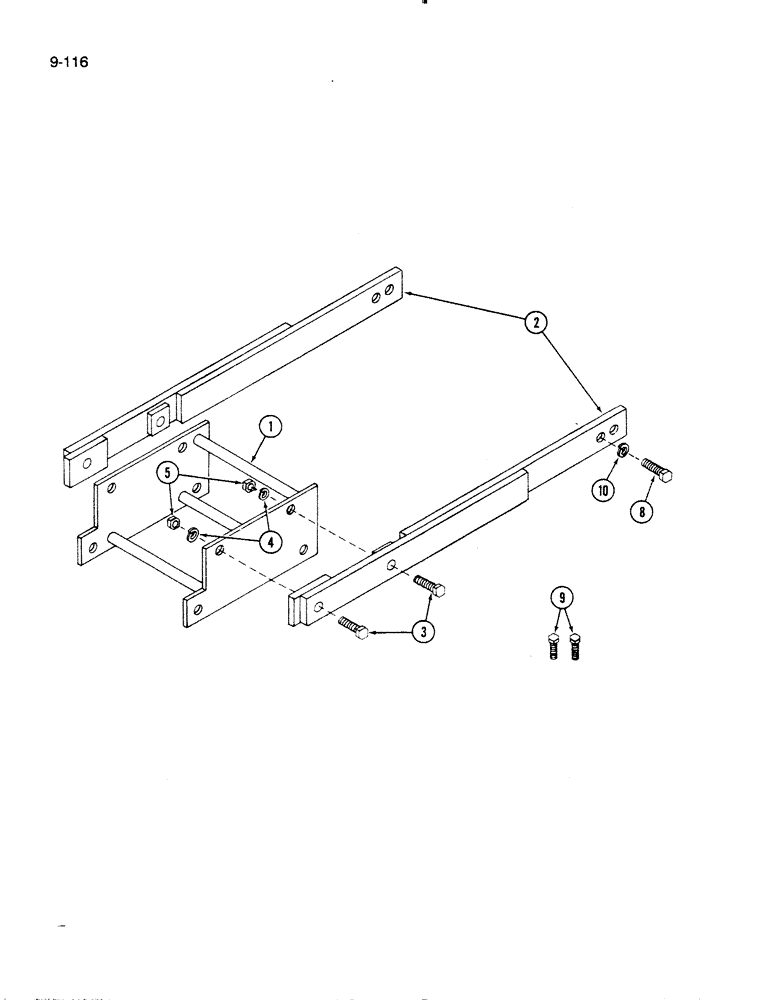

Запчасти Case IH 60FMS (9-116) - MOUNTING KIT, 60FMS MOWER, 245 AND 245 TRACTOR (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958467C1

ANCHOR

SUPPORT - mounting, front

1шт.

2

1973034C1

SUPPORT

RAIL - side, support

2шт.

3

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

4шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

4шт.

8

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- mounting, frame

2шт.

9

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- mounting, (4 wheel drive tractors)

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.
