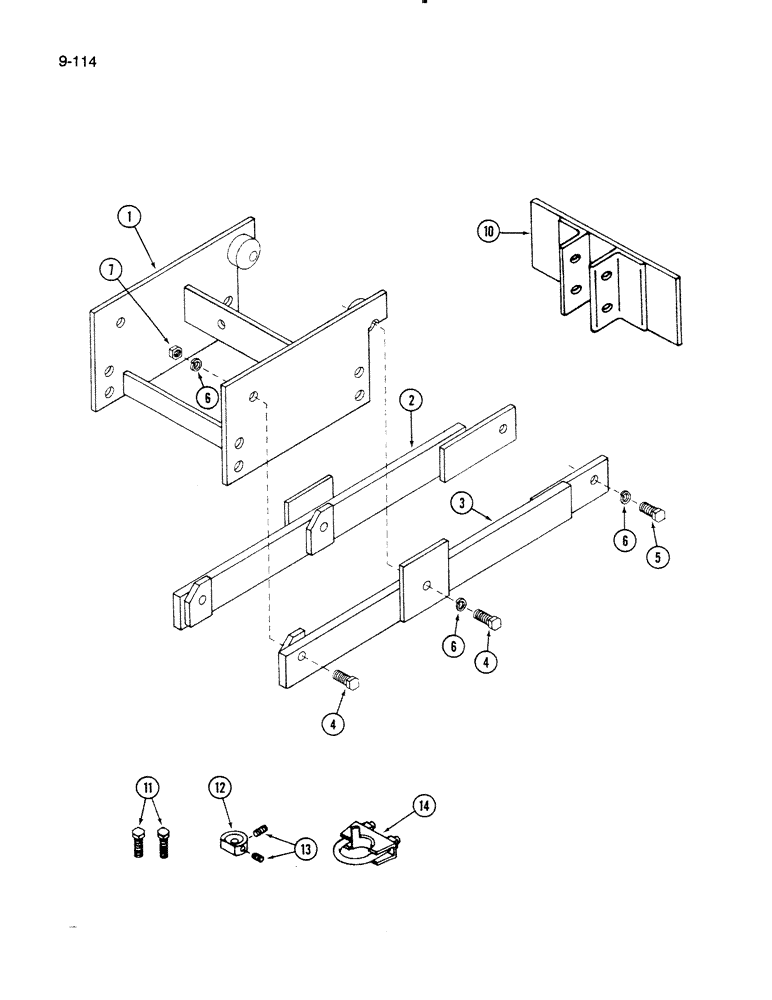

Запчасти Case IH 60FMS (9-114) - MOUNTING KIT, 60FMS MOWER, 235H TRACTOR (03) - CHASSIS/MOUNTED EQUIPMENT

1

1960478C1

BRACKET

- mounting

1шт.

2

1960525C1

BRACE

- mounting, right

1шт.

3

1960526C1

BRACE

- mounting, left

1шт.

4

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

5

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- mounting, frame

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

1960471C1

STOP

- down, hitch

1шт.

11

934942R1

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

Hex, M8 x 40, 8.8, Full Thd

2шт.

12

1954998C1

SPACER

STOP - wheel, right

1шт.

13

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW - hex socket headless set, 3/8 x 3/8 inch

2шт.

14

1954999C1

STOP

- wheel, left

1шт.
