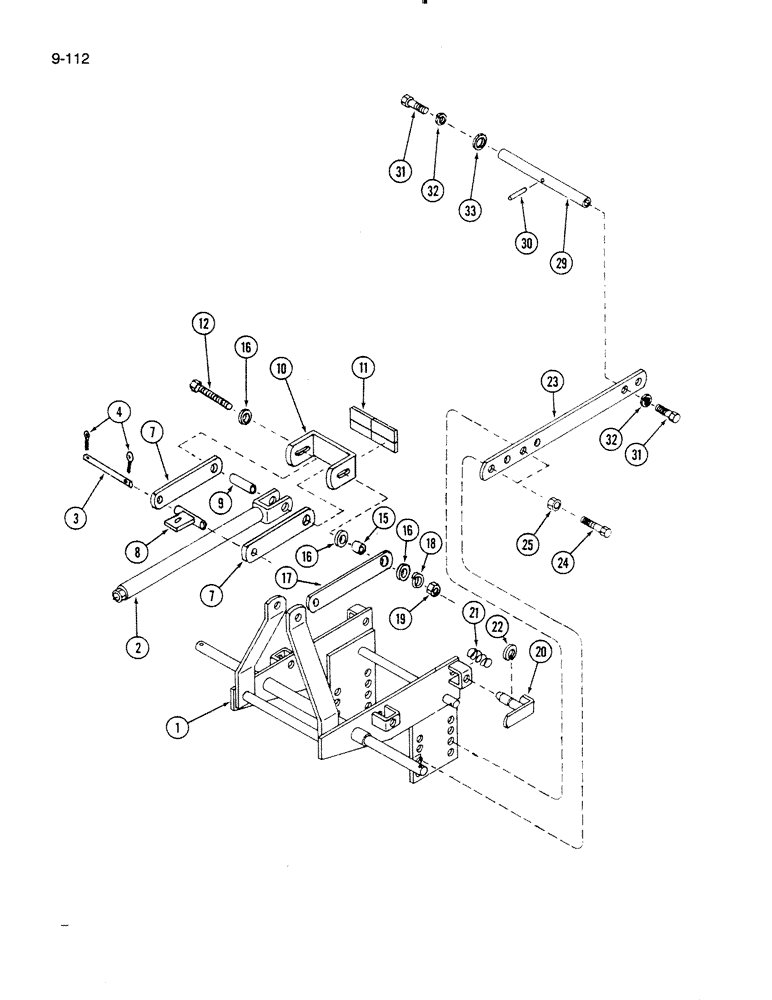

Запчасти Case IH 60FMS (9-112) - HITCH MOUNTING, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1973212C1

BRACKET

- mounting, hitch

1шт.

2

REF

INSTRUCTION

LINK - top (See page 9-111)

1шт.

3

1973219C1

PIN

- connecting

1шт.

4

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

7

1973216C1

STRAP

- link

2шт.

8

1973218C1

STRAP

BRACKET - mounting, cylinder

1шт.

9

1973217C1

SPACER

- strap

2шт.

10

1973215C1

BRACKET

- bumper

1шт.

11

1958352C1

PAD

MOULDING - bracket

2шт.

12

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

15

384678R1

SPACER

- strap

1шт.

16

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

3шт.

17

1958387C1

BAR

ANCHOR - spring

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

195-103

WASHER,5/16"

NUT - hex, 1/2 inch NC

1шт.

20

1958440C1

PIN

ASSEMBLY - quick release

4шт.

21

1958442C1

SPRING

- tension

4шт.

22

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

23

1958381C1

BAR

SUPPORT - shaft

2шт.

24

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

25

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

29

1958385C1

ROD

SHAFT - pin (Replaces 1958358C1)

1шт.

30

138-2009

PIN,3/16" x 1", Coiled

1шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

43374D

SPRING WASHER

- flat, 49/64 x 1-1/16 x 3/64 inch

1шт.
