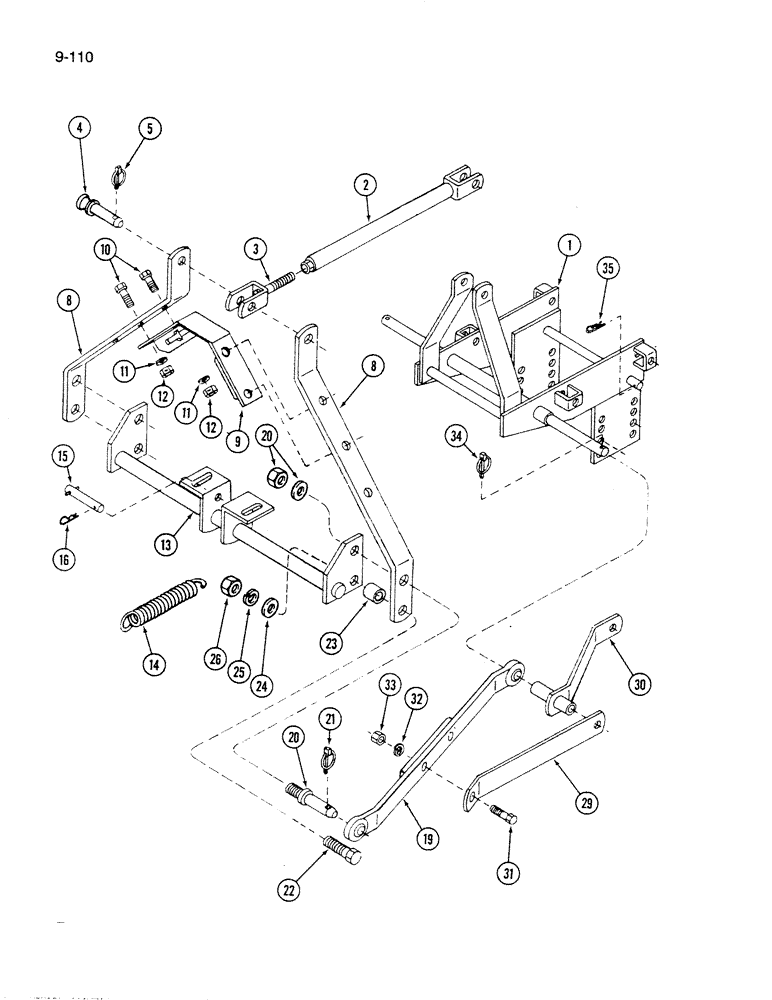

Запчасти Case IH 60FMS (9-110) - HITCH, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

REF

INSTRUCTION

BRACKET - mounting (See page 9-113)

1шт.

2

1973214C1

LINK

- top, hitch

1шт.

3

1973213C1

LINK

YOKE - link, top

1шт.

4

1958226C1

PIN

- locating

1шт.

5

3057346R11

LINCH PIN

PIN ASSEMBLY - lock

1шт.

8

1973208C1

ARM

- mast, side

2шт.

9

1973211C1

BRACKET

ANGLE - anchor, mast

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

4шт.

12

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

13

1973209C1

BAR

SUPPORT - lift

1шт.

14

1960268C1

SPRING

- tension

1шт.

15

1958393C1

PIN

ASSEMBLY - locating

1шт.

16

480523R1

HAIR PIN COTTER

1шт.

19

1958388C1

ARM

ASSEMBLY - hitch

2шт.

20

1958199C1

PIN

ASSEMBLY - arm

2шт.

21

3057346R11

LINCH PIN

PIN ASSEMBLY - lock

2шт.

22

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

2шт.

23

1973210C1

SPACER

- arm

2шт.

24

1958227C1

WASHER

- thrust

2шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

129-107

NUT,5/8"-11, G5

2шт.

29

1958389C1

BAR

BRACE - stop, arm

2шт.

30

1973220C1

BAR

SUPPORT - hitch arm

2шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

33

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

34

3057346R11

LINCH PIN

PIN ASSEMBLY - lock

2шт.

35

480523R1

HAIR PIN COTTER

2шт.
