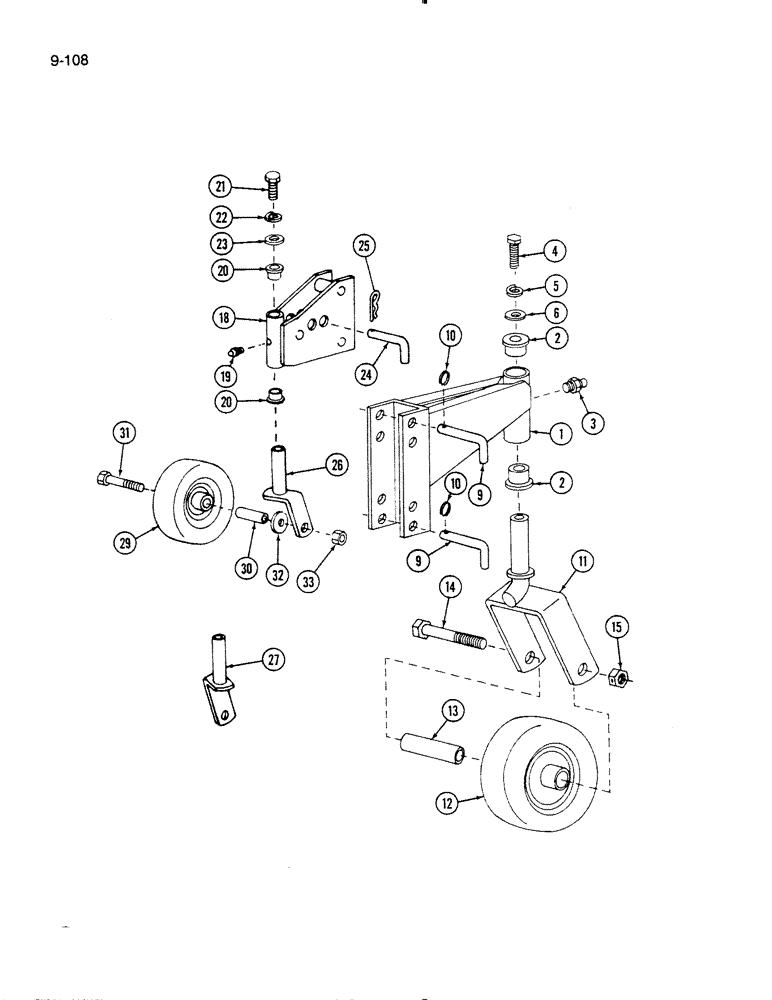

Запчасти Case IH 60FMS (9-108) - CASTER WHEELS, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1958183C1

SUPPORT

- wheel, caster

2шт.

2

1958184C1

BUSHING

- pivot, support

4шт.

3

16982R91

FITTING

- lube, 1/4 inch

2шт.

4

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

2шт.

9

1958192C1

PIN

- locating

4шт.

10

1958193C1

CLIP

- spring

4шт.

11

1958187C1

BRACKET

FORK - wheel

2шт.

12

1973206C1

RIM

WHEEL ASSEMBLY - caster, mower

2шт.

13

663393R1

SPACER

- wheel

2шт.

14

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

2шт.

15

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

18

1954993C1

BRACKET

SUPPORT - wheel, outer

2шт.

19

16982R91

FITTING

- lube, 1/4 inch

2шт.

20

1958448C1

BUSHING

- pivot, support

4шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

24

1954990C1

PIN

- support, wheel

2шт.

25

NSS

NOT SOLD SEPARAT

PIN - hair type (Order 407207R1 package of 50)

2шт.

26

1954997C1

ARM

FORK - wheel, right caster

1шт.

27

1954996C1

ARM

FORK - wheel, left caster

1шт.

29

1958449C2

WHEEL

KIT - caster

2шт.

30

1973315C1

SPACER

- wheel

1шт.

31

413-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

1шт.

32

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

4шт.

33

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.
