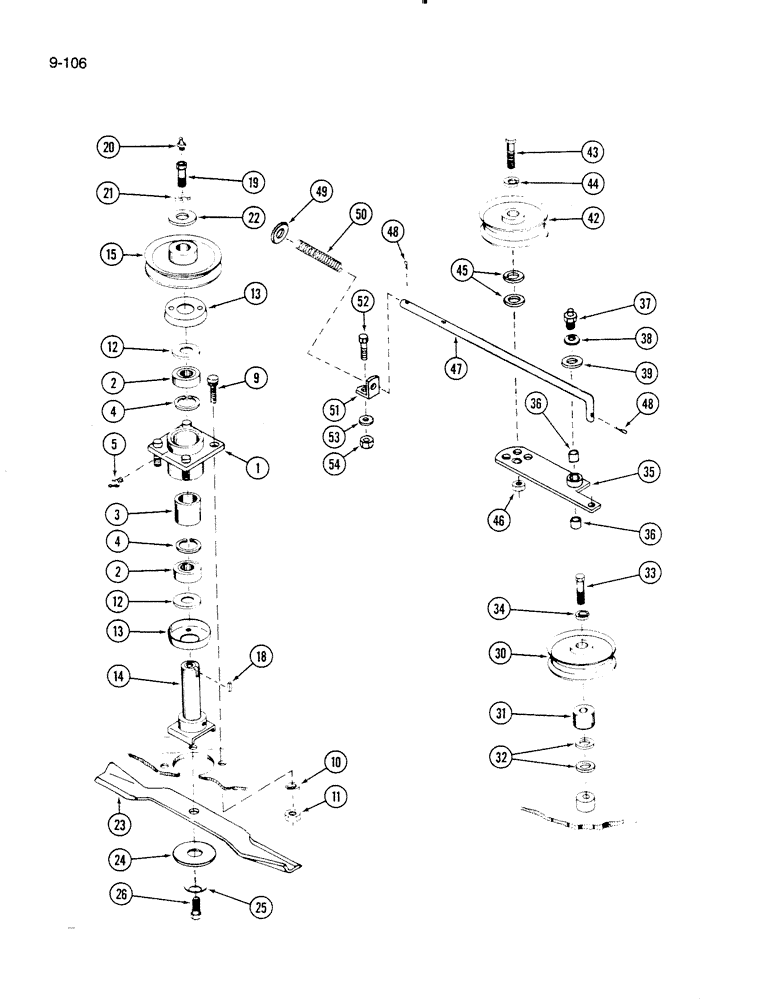

Запчасти Case IH 60FMS (9-106) - PULLEYS, BLADE AND SPINDLE, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

1954974C1

HOUSING ASSY.

HOUSING ASSEMBLY - bearing, spindle

3шт.

2

295109R91

BALL BEARING

ASSEMBLY - ball

2шт.

3

1954975C1

SPACER

- bearing

1шт.

4

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight short, 1/8 inch PT

3шт.

9

74770C1

BOLT,1/2" - 20 x 1 1/4", Grade 5

- housing

12шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

11

129-125

NUT,1/2"-20, G5

12шт.

12

1954979C1

WASHER

- pivot, 1/32 inch thick

1шт.

13

1954978C1

CAP

COVER - bearing

6шт.

14

1954976C1

SHAFT

SPINDLE - shaft

3шт.

15

1958164C1

PULLEY

- spindle

3шт.

18

1954929C1

BUCKET TOOTH KEY

KEY - square, shaft

3шт.

19

1958165C1

FITTING,Hex, 1/2" - 20 x 1 1/2"

BOLT ASSEMBLY - lube, pulley

3шт.

20

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - lube, 1/4 inch

1шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

22

22770R1

WASHER

- flat, 17/32 x 1-1/2 x 5/32 inch

3шт.

23

1958403C1

KNIFE

BLADE - mower 21" Length

3шт.

24

486801R1

WASHER

- flat, blade

3шт.

25

1958169C1

BELLEVILLE WASHER

- spring, serrated

3шт.

26

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

- hex, 1/2 NF x 1-1/2 inch

3шт.

30

1958170C1

PULLEY

- idler

1шт.

31

384678R1

SPACER

- pulley

1шт.

32

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

33

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

1973202C1

ARM

ASSEMBLY - idler

1шт.

36

1958173C1

BUSHING

- pivot, arm

2шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight short, 1/8 inch PT

1шт.

38

1958174C1

SPRING WASHER

- spring

1шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

1шт.

42

1958488C1

PULLEY

- idler

1шт.

43

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

45

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

46

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

47

1973203C1

ROD

- idler

1шт.

48

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

49

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

50

1958487C1

SPRING

- rod, idler

1шт.

51

1958179C1

BRACKET

ANCHOR - idler rod

1шт.

52

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

53

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

1шт.

54

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.
