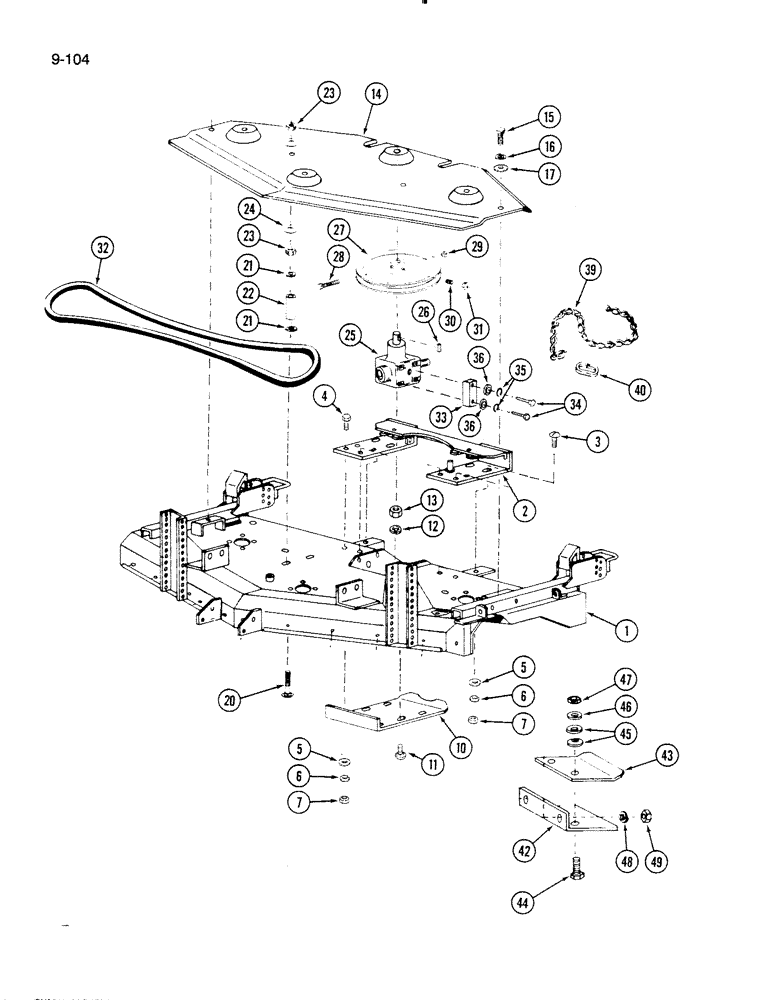

Запчасти Case IH 60FMS (9-104) - BELT COVER AND DRIVE, 60FMS MOWER (03) - CHASSIS/MOUNTED EQUIPMENT

1

REF

INSTRUCTION

DECK - mower (See page 9-103)

1шт.

2

1973201C1

BRACKET

SUPPORT - lift, rear

1шт.

3

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

2шт.

4

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

5

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

10

1958370C1

LARGE PLATE

PLATE - skid

1шт.

11

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

13

120376

NUT,5/16"-18, G5

6шт.

14

1973205C1

COVER

- belt and drive

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

2шт.

20

27455R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 3-1/2 inch

2шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

4шт.

22

208665C1

SPACER

- cover

2шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

24

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

4шт.

25

REF

INSTRUCTION

GEARBOX ASSEMBLY - drive (See page 9-101)

1шт.

26

1954928C1

KEY

- square, 1/4 x 1-1/2 inch long

1шт.

27

1973200C1

PULLEY

- drive

1шт.

28

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

29

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

30

426374

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - slot headless set, 3/8 NC x 1/2 inch

1шт.

31

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

32

1973204C1

BELT,0.66" W x 130.99" L

V-BELT , Drive, Mower 0.66" W x 130.99" L

1шт.

33

1958367C1

SPACER

- square, gearbox

4шт.

34

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

8шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

36

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

8шт.

39

468032R1

CHAIN (AG)

CHAIN - deck, 30 inch

2шт.

40

1958376C1

LINK

- chain, quick

2шт.

42

1960509C1

COVER

- shaft

1шт.

43

1960513C1

CLIP

- locating

1шт.

44

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

45

1958174C1

SPRING WASHER

- spring

4шт.

46

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

2шт.

47

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

48

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

49

129-125

NUT,1/2"-20, G5

2шт.
