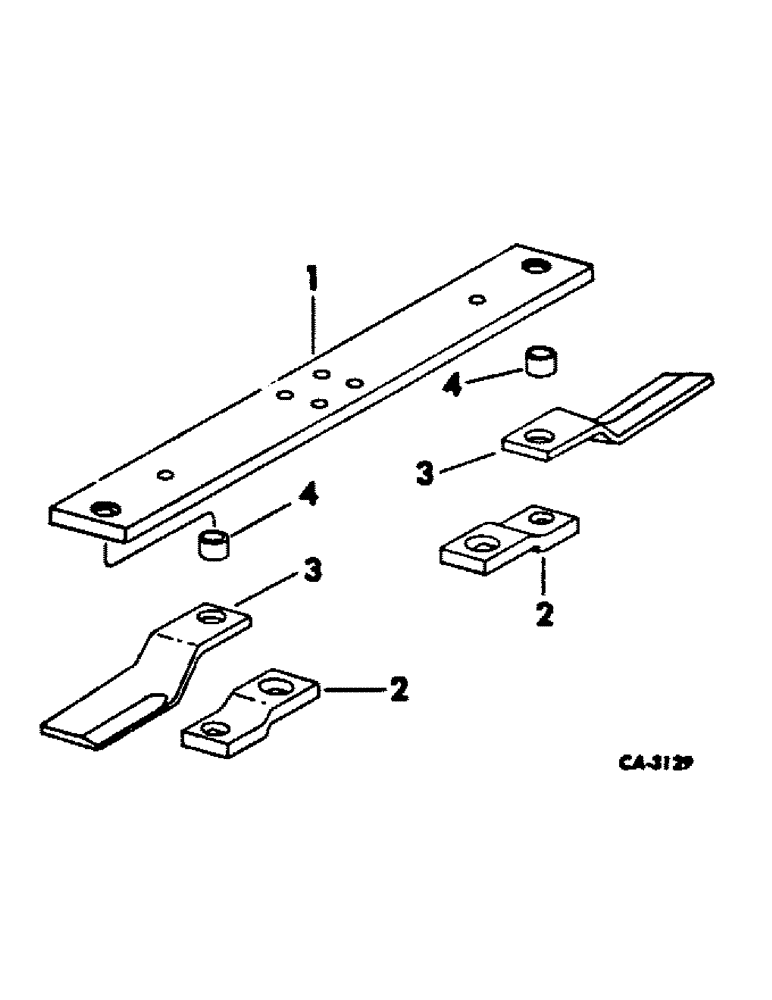

Запчасти Case IH 411 (S-07) - ROTOR BAR AND BLADES, 1972 AND SINCE

1

547477R1

BAR, rotor

1шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 type 8 hex-hd cap

4шт.

19646R1

LOCK NUT,3/4"-10

NUT, 3/4-10 type 8 nylon insert

4шт.

2

478741R91

STRAP

HAMMERSTRAPS, pair

1шт.

296846R1

CARRIAGE BOLT,#3, 3/4" - 10 x 2 3/4", Gr 5

BOLT, 3/4-10 x 2-1/4 no. 3 plow

2шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

2шт.

296753R1

CARRIAGE BOLT,#3, 1" - 8 x 3 1/4", Gr 5

BOLT, 1 x 3-1/2 no. 3 hd plow

2шт.

19613R1

LOCK NUT,1"-8

NUT, 1-8 nylon insert

2шт.

3

477830R91

BLADE

W/BUSHING, 9/16 suction plain RH pair; 2 blades

1шт.

4

469377R1

BUSHING

swinging blades

2шт.

PART # 477831R2. THIS PART DOES NOT INCLUDE THE BUSHINGS PART NUMBER #4 469377R1. HOLE DIA. 1.391" 7-22-99 jlg

1шт.
