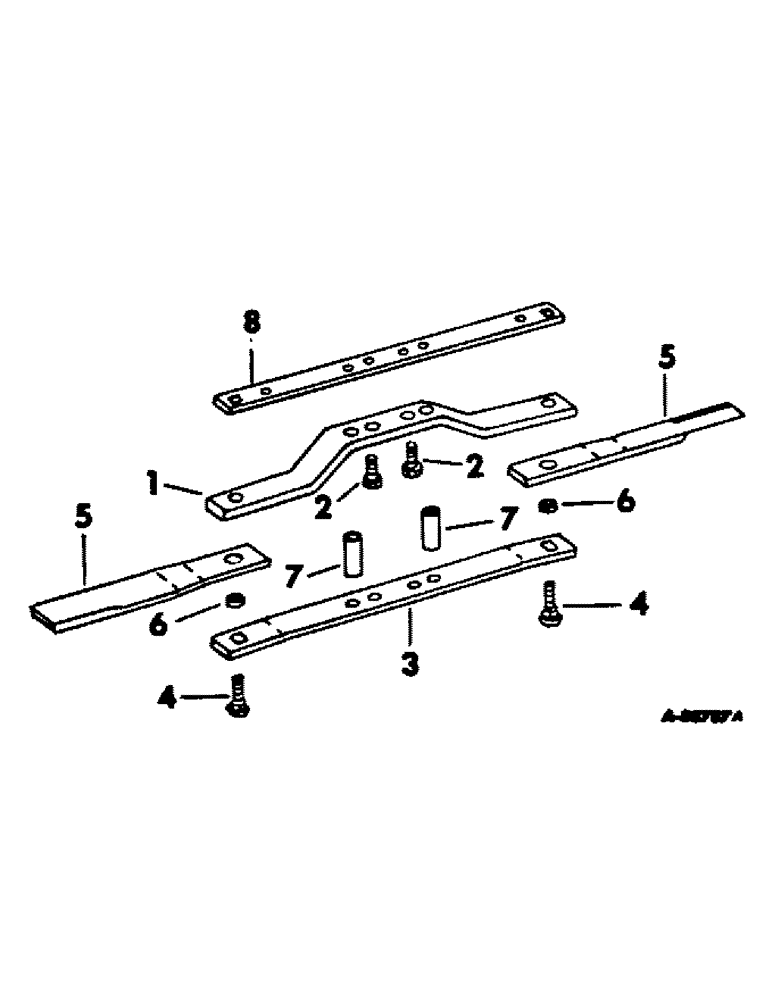

Запчасти Case IH 411 (S-06) - ROTOR BAR, BLADES, AND RELATED PARTS, 1968 TO 1972

1

489169R2

BAR, rotor

1шт.

2

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

4шт.

19647R1

LOCK NUT,5/8"-11, GC

NUT, 5/8-11 hex. nylon insert

4шт.

3

489170R2

BRACE, tie strap

1шт.

4

489124R1

BOLT

7/8-9 x 2-3/4 type 4 sq-nk crg

4шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 hex. nylon insert

4шт.

5

484943R91

PACKAGE

BLADE W/BUSHING, 1/2 str hard surface RH pair, note

1шт.

5

484942R91

BLADE

W/BUSHING, 1/2 suction hard surface RH, pair

1шт.

5

484935R92

BLADE W/BUSHING, 1/2 extra heavy hard surface, pair

1шт.

5

546743R91

BLADE

W/BUSHING, 1/2 suction plain RH, pair

1шт.

5

546744R91

BLADE

W/BUSHING, 1/2 str plain RH, pair

1шт.

5

484942R91

BLADE

W/BUSHING, 1/2 suction hard surface RH, pair

1шт.

5

484943R91

PACKAGE

BLADE W/BUSHING, 1/2 str hard surface RH, pair, note

1шт.

6

484929R1

BUSHING

blade, for all 1/2 inch blades

2шт.

7

492464R1

SPACER, rotor

4шт.

8

492465R1

BAR, upper rotor

2шт.
