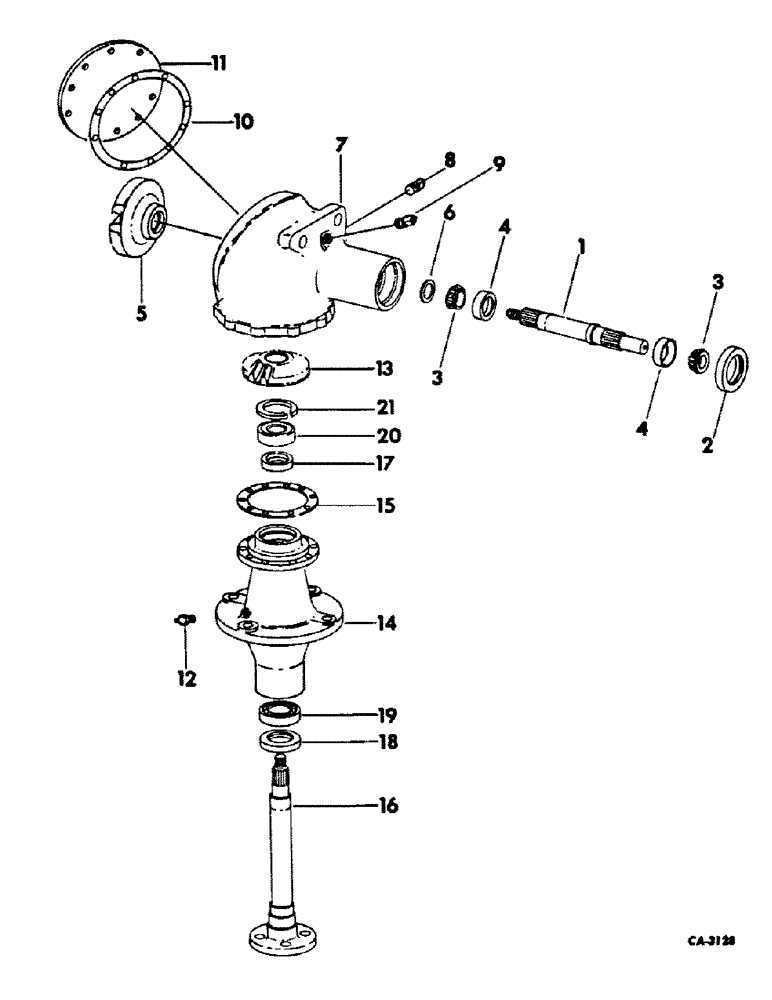

Запчасти Case IH 411 (S-05) - GEAR HOUSING, 1972 AND SINCE

1

485355R21

SHAFT W/PIN AND NUT, horizontal

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

378157R91

OIL RESERVOIR

SEAL, oil

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, gear cone

2шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

2шт.

5

549251R1

GEAR

bevel, 20T

1шт.

6

663604R2

SHIM

gear case, .020

2шт.

6

663605R2

SHIM

gear case, .007

2шт.

6

663606R2

SHIM

gear case, .005

2шт.

7

478800R1

HOUSING, upper gear

1шт.

486791R1

WASHER

15/32 x 1-1/2 x 1/4

1шт.

180440

WASHER

7/16 C-Z HV int-tooth lock

1шт.

21460R1

BOLT W/NYLON INSERT, 7/16-14 x 1-3/8 HV duty hex-hd mach

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

8

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8 auto sq-hd-pipe

2шт.

9

495538R1

PLUG, main drive housing

1шт.

10

663607R1

GASKET

gear case cover

1шт.

11

663596R1

COVER, main gear housing

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping str lub

1шт.

13

549252R1

PINION

GEAR, bevel, 15T

1шт.

14

469249R2

HOUSING, lower shaft

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16-14 x 1-1/2 znd type 8 hex-hd cap

10шт.

131100

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

20094R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

SCREW, 3/4-10 x 2-1/2 type 8 hex-hd cap

4шт.

62177V

WASHER

4шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

4шт.

15

478801R1

SHIM, lower shaft housing, .020

2шт.

15

478802R1

SHIM

lower shaft housing, .007

2шт.

15

478803R1

SHIM

lower shaft housing, .005

2шт.

16

469251R1

SHAFT, vertical

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

17

659675R91

OIL SEAL

SEAL, lower shaft upper oil

1шт.

18

660432R91

OIL SEAL

SEAL, lower shaft lower oil

1шт.

19

478799R91

BEARING

lower shaft lower ball

1шт.

20

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING, lower shaft upper

1шт.

21

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , lower shaft upper 3.156", Int, #315

1шт.
