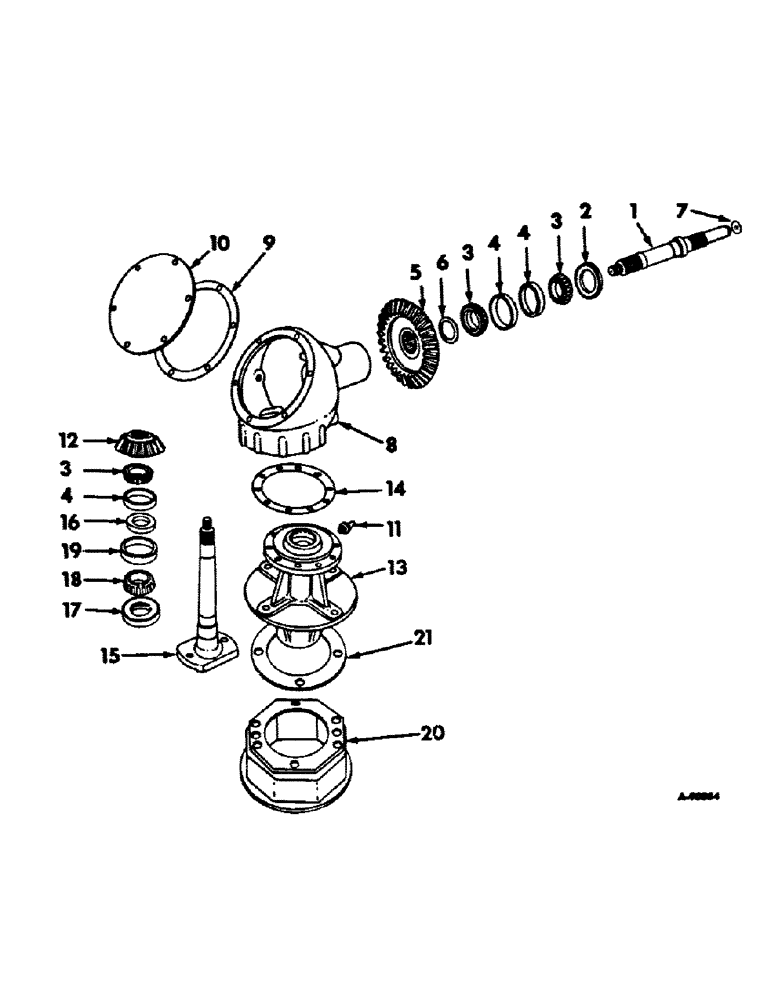

Запчасти Case IH 411 (S-24) - GEAR HOUSING, 1968 TO 1972

1

485355R21

SHAFT, horizontal

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 C-Z slt hex.

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

2

378157R91

OIL RESERVOIR

SEAL, oil

1шт.

3

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, gear case cone

3шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Gear case

3шт.

5

663588R1

GEAR, bevel drive, 30T, recommended 549251R1 gear bevel drive, 20T, drive on input shaft

1шт.

6

663604R1

SHIM

gear case, .020

2шт.

6

663605R1

SHIM

gear case, .007

2шт.

6

663606R1

SHIM

gear case .005

2шт.

7

486791R1

WASHER

horizontal shaft retaining

1шт.

180440

WASHER

7/16 C-Z HV int-tooth lock

1шт.

21460R1

BOLT W/NYLON INSERT, 7/16-14 x 1-3/8 LH HV duty hex-hd mach

1шт.

21833R1

WASHER, 29/32 x 2 x 3 ga C-Z

1шт.

8

478800R1

HOUSING, upper gear

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 sq-hd pipe

1шт.

495538R1

PLUG, main drive housing

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

663607R1

GASKET

gear case cover

1шт.

10

663596R1

COVER, main gear housing

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping str lub, lower shaft housing

1шт.

12

663589R1

GEAR, bevel drive, 17T, recommended 549252R1 gear, bevel drive 15T

1шт.

13

469252R2

HOUSING, lower shaft

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

4шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16-14 x 1-1/2 C-Z type 8 hex-hd mach

10шт.

62177V

WASHER

25/32 x 1-1/2 x 3/16

2шт.

131100

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

14

478801R1

SHIM, lower shaft housing, .020

2шт.

14

478802R1

SHIM

lower shaft housing, .007

2шт.

14

478803R1

SHIM

lower shaft housing, .005

2шт.

15

485356R11

SHAFT, vertical w/nut

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

16

20108D

SEAL

lower shaft upper oil

1шт.

17

664068R91

SEAL

lower shaft lower oil

1шт.

18

459454R91

ROLLER BEARING,1.563" ID x 1.01"

BEARING ASSY. lower shaft cone

1шт.

19

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

BEARING, lower shaft cup

1шт.

20

486293R1

RING, stabilizer

1шт.

21

486800R1

RETAINER, ring

1шт.

223457

BOLT (SPREADER)

SCREW, 3/4-10 x 3-3/4 type 4 hex-hd cap

4шт.
