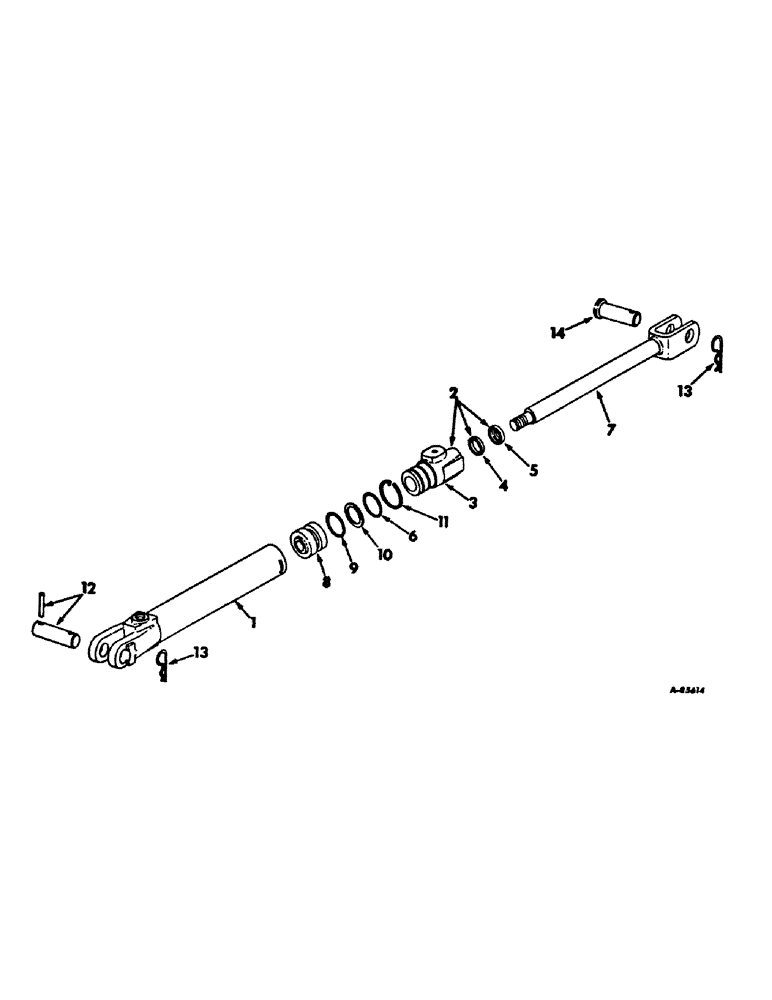

Запчасти Case IH 411 (S-23) - HYDRAULIC CYLINDER, SINGLE-ACTION, 2 X 8 IN.

381832R91

CYLINDER

ASSY, hydraulic

1шт.

1

381820R91

TUBE ASSY, cylinder

1шт.

2

381802R11

HEAD ASSY, rod end

1шт.

3

381802R1

HEAD, rod end

1шт.

4

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

5

354049R1

RETAINER

piston rod dust seal

1шт.

6

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8 ga

1шт.

7

381842R91

ROD

ASSY, piston

1шт.

385020R1

NUT

3/4-16 hex. lock

1шт.

8

381848R1

PISTON

HEAD, piston

1шт.

9

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16 ga

1шт.

10

381850R1

WASHER

piston head backup

1шт.

11

461180R1

RETAINER

cylinder end

1шт.

12

381852R11

PIN

ASSY, cylinder pivot

1шт.

13

520175R1

CLIP

PIN, quick attachable cot.

2шт.

14

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 headed

1шт.
