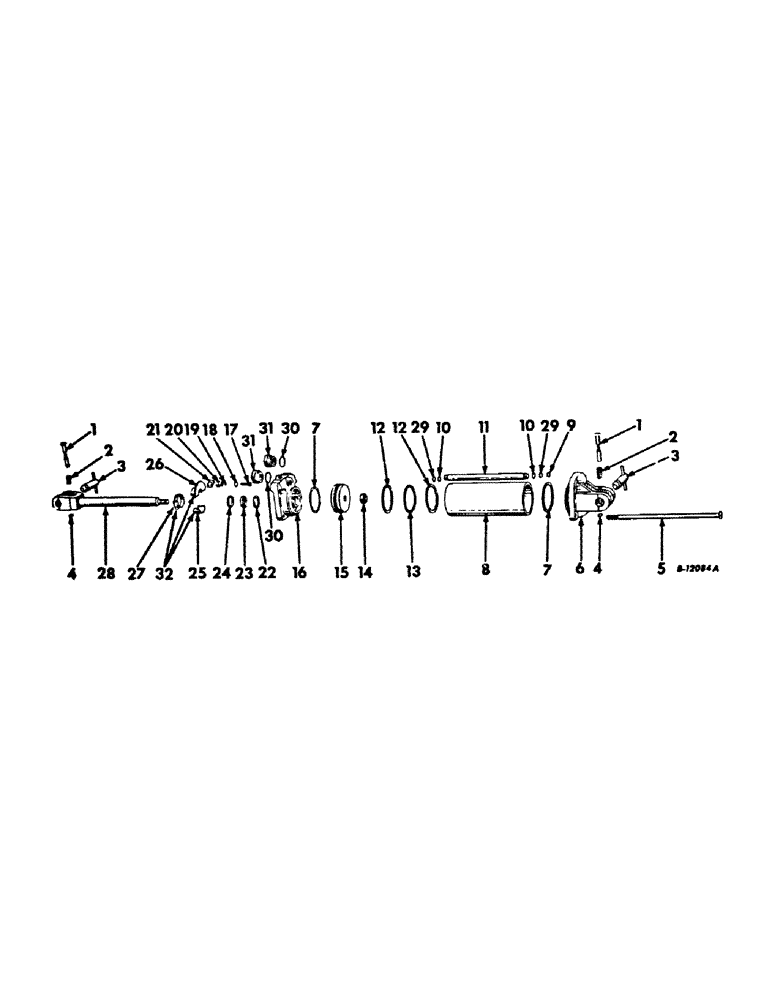

Запчасти Case IH 411 (S-22) - HYDRAULIC CYLINDER, DOUBLE-ACTING

371291R93

HYDRAULIC CYLINDER

CYLINDER ASSY, 1/2 x 8, consists of all parts not marked by unit designation & those marked unit A

2шт.

371292R92

HYDRAULIC CYLINDER

CYLINDER ASSY, 1/2 x 8, consists of all parts not marked by unit designation & those marked unit B

3шт.

1

352369R2

PIN

lock

2шт.

PIN, 3/32 x 3/4 cot.

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie, 4 for unit B

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

5

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd, for 4 unit A

1шт.

6

371298R3

HEAD

CYLINDER, bottom end, unit B

1шт.

6

371296R3

HEAD

CYLINDER, bottom end, unit A

1шт.

7

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/2 x 1/8, 2 for unit B

1шт.

7

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8, 2 for unit A

1шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder, unit B

1шт.

8

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

cylinder, unit A

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

o-ring back up, used only w/two piece return tube, 2 for unit B

1шт.

9

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 2 for unit A 3/8"

1шт.

10

354835R1

WASHER

cylinder return tube

2шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back up, 2 for unit B

1шт.

12

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back up, 2 for unit A

1шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, unit B

1шт.

13

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16, unit A

1шт.

14

361011R1

NUT

piston rod rock

1шт.

15

361003R1

HEAD

piston, unit B

1шт.

15

361000R1

HEAD

piston, unit A

1шт.

16

371297R11

HEAD (CYLINDER)

HEAD W/O-RINGS & PLUGS, unit B

1шт.

16

371295R21

HEAD W/O-RINGS & PLUGS, unit A

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

19

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16

1шт.

20

361007R11

RETAINER

ASSY

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

172792

SCREW, 1/4 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cylinder piston rod gland

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

piston rod dust seal

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R11

PISTON ROD

ROD & YOKE ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug, unit B

2шт.

30

470828R1

O-RING, 41/64 x 13/16 x 5/64, cylinder head plug, unit A

2шт.

31

9410360

PLUG

cylinder head, 2 for unit B

1шт.

31

9410359

PLUG

cylinder head, 2 for unit A

1шт.

32

375426R1

COLLAR ASSY, stroke limit

1шт.

363138R92

SEAL KIT

PACKAGE, o-ring service, consists of ref. nos. 7, 9, 12, 13, 18, 19, 22, 23, 24, 29.

1шт.
