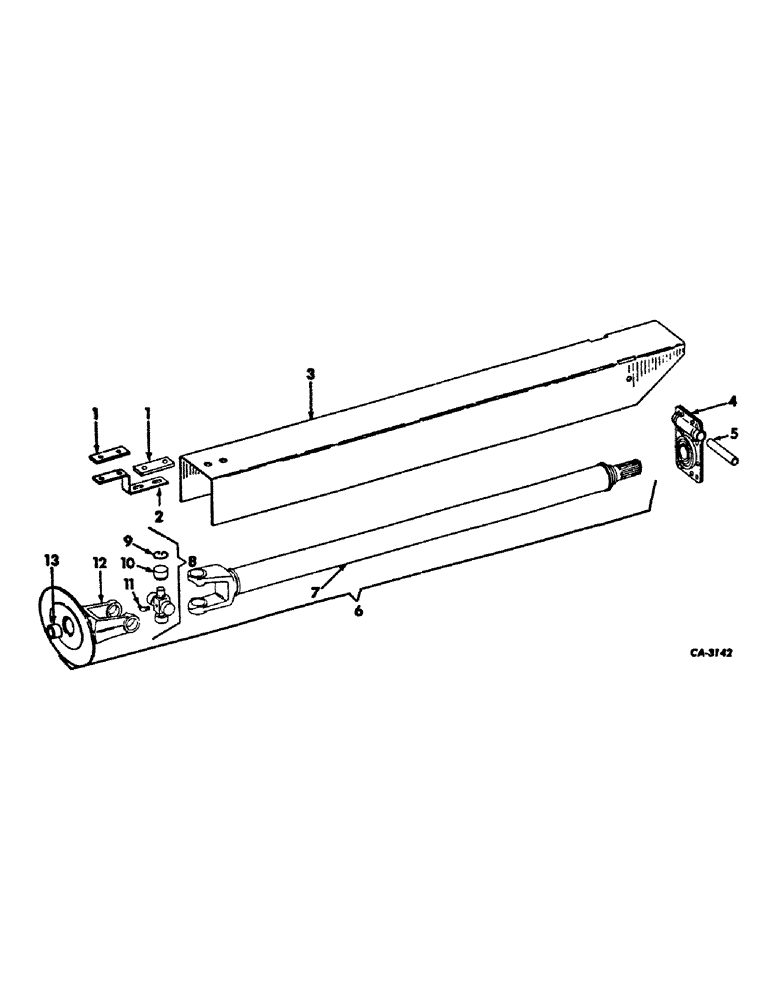

Запчасти Case IH 411 (S-18) - REAR POWER DRIVE AND SHIELD, FOR TRAILING HITCH

1

469913R1

SPACER, rubber

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

2шт.

2

469384R1

CLIP, slip clutch shield

1шт.

3

470032R11

SHIELD W/PRODUCT GRAPHIC, input drive

1шт.

4

ST669

BEARING ASSY,35mm ID

hanger

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

hanger bearing

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

6

485497R91

JOINT ASSY, single universal, for use w/slip clutch

1шт.

6

485498R91

JOINT ASSY, single universal rear implement end, for use w/shear bolt drive

1шт.

7

470067R91

YOKE, tube and stub assy

1шт.

8

347960R91

U-JOINT SPIDER

KIT, center cross

1шт.

9

495962R1

RING

snap

4шт.

10

661671R91

JOINT

BEARING ASSY, needle

4шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

12

485704R91

YOKE

ASSY, flange, use w/485497R91

1шт.

12

485698R91

YOKE ASSY, flange, use w/485498R91

1шт.

13

485393R1

BUSHING

1шт.
