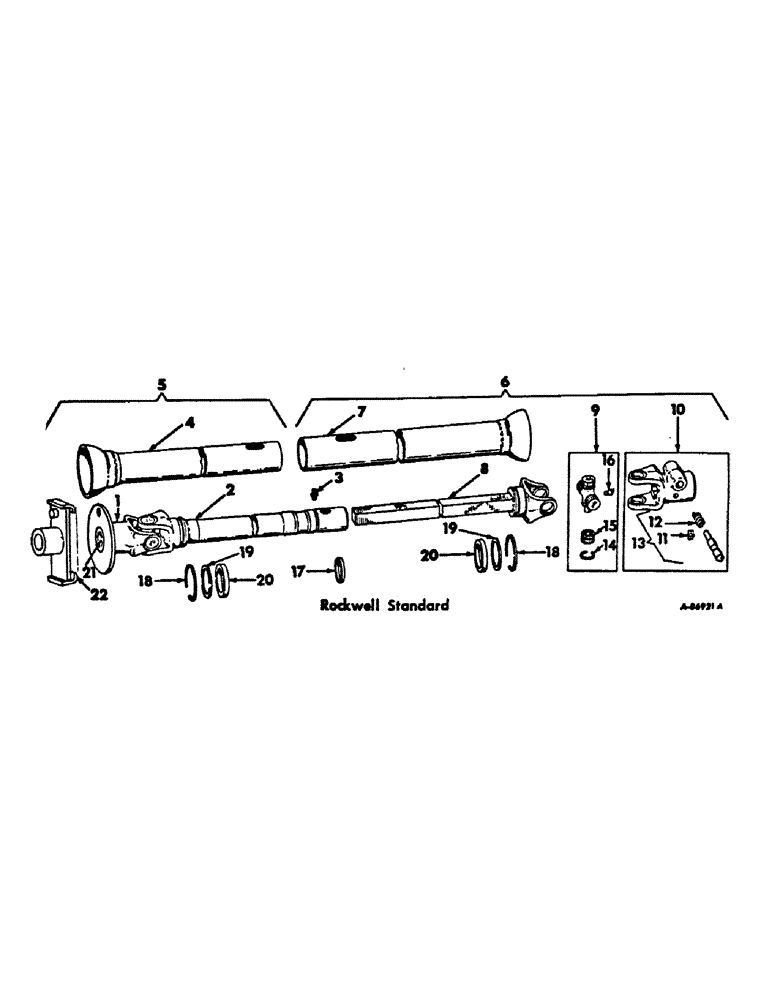

Запчасти Case IH 411 (S-16) - POWER DRIVE EQUIPMENT, FOR TWO OR THREE POINT HITCH

1

485698R91

YOKE ASSY, flange

1шт.

Use w/shear bolt drive

1шт.

1

485704R91

YOKE

ASSY, flange

1шт.

Use w/slip clutch drive

1шт.

2

489198R1

YOKE, tube & sleeve assy

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lub

1шт.

4

489199R1

SHIELD

ASSY, inner

1шт.

5

489195R1

JOINT ASSY, single universal shielded rear half, implement end

1шт.

Use w/shear bolt drive

1шт.

5

489196R91

JOINT ASSY, single universal shielded rear half, implement end

1шт.

Use w/slip clutch drive

1шт.

6

469346R91

JOINT ASSY, single universal shielded front half, tractor end

1шт.

7

469414R1

SHIELD OUTER

1шт.

8

469415R1

YOKE

SHAFT W/YOKE

1шт.

9

347960R91

U-JOINT SPIDER

KIT, center cross service

2шт.

10

660484R21

FORK

YOKE ASSY, quick detachable

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

13

455346R1

PIN

ASSY, locking

1шт.

14

495962R1

RING

snap

8шт.

15

661671R91

JOINT

BEARING ASSY, needle

8шт.

16

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

613436R1

CLAMP

RING, snap shield

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

485393R1

BUSHING

1шт.

22

492500R1

HUB ASSY, driven

1шт.

Use w/shear bolt drive

1шт.

120376

NUT,5/16"-18, G5

1шт.

454873

BOLT

SCREW, 5/16-18 x 1-3/4 type 4 C-Z hex-hd cap, shear bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

492123R1

BOLT,Square, 1/2" - 20 x 1 1/2", Steel

SCREW, 1/2-20 x 1-1/2 cone-pt sq-hd set

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

3шт.
