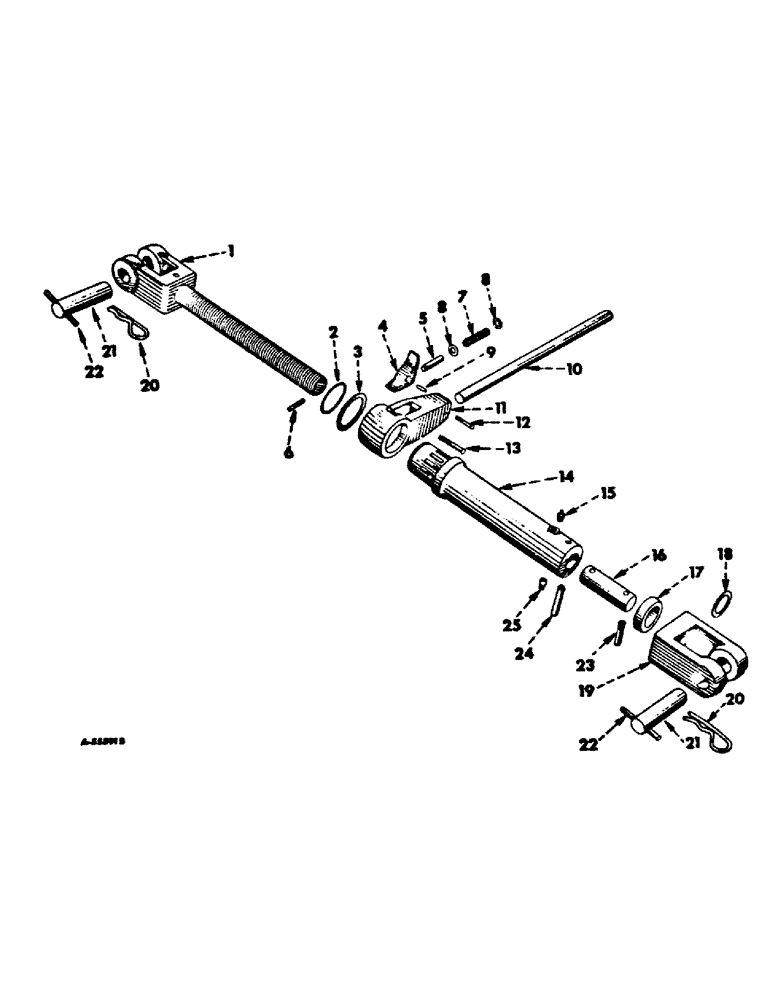

Запчасти Case IH 411 (S-12) - HAND LIFT ATTACHMENT

1

591117R91

CAPSCREW

SCREW & CYLINDER HD ASSY, adjusting

1шт.

2

591116R1

SNAP RING,#200, 1.909", Ext Spiral

RING, adjusting tube retaining

1шт.

3

Q3491

WASHER, 2-1/32 x 2-3/4 x 14 ga

1шт.

4

591108R1

PAWL

RATCHET

1шт.

5

591102R1

PIN

ratchet arm

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

M296

SPRING

ratchet arm pin

1шт.

8

615047R1

WASHER

7/16 x 3/4 x 18 ga

2шт.

9

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

10

591103R1

ROD

ARM, ratchet lever

1шт.

11

591109R1

SUPPORT

ratchet lever

1шт.

12

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

13

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

14

591112R1

TUBE,1.437" ID, 2.5" OD, 12.625" Length

adjusting hand lift

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

591105R1

ANCHOR

adjusting screw

1шт.

17

50738V

THRUST BEARING

adj screw anchor thrust

1шт.

18

591474R1

COLLAR

hand lift

1шт.

19

591110R1

YOKE

adjusting screw

1шт.

20

591107R1

COTTER PIN

quick attachable cot.

1шт.

21

591104R1

PIN

hand lift locking

1шт.

22

443186

GROOVED PIN,3/8" x 2 3/4", Type E

Pin, Grooved, 3/8" x 2 3/4", Type E

1шт.

23

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

24

616387R1

PIN,3/8" x 2", Coiled

1шт.

25

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto sq-hd

1шт.
