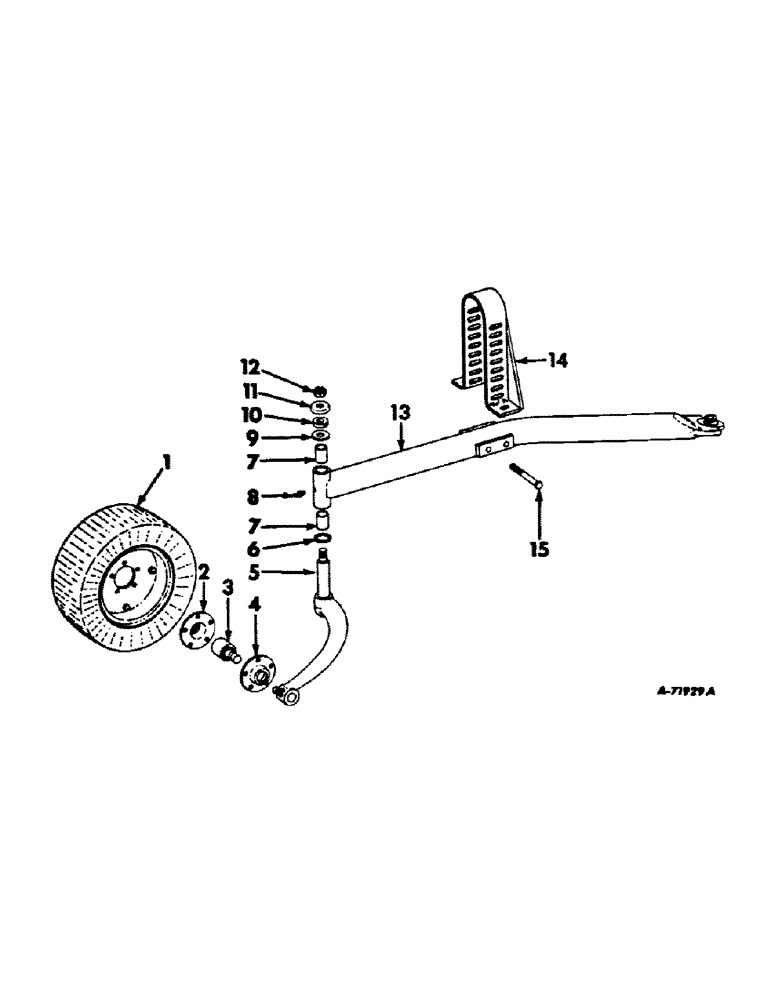

Запчасти Case IH 411 (S-11) - GAUGE WHEEL

1

469396R91

WHEEL

W/TIRE, gauge, 4.00-8

1шт.

2

465236R1

COVER

HOUSING, closed brg

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd cap

5шт.

465466R1

WASHER, 3/8 ext-tooth lock

10шт.

3

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSY, gauge wheel ball

1шт.

4

465235R1

RETAINER

HOUSING, open brg

1шт.

5

465228R91

AXLE

ASSY, caster wheel

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

182928

SCREW, 3/8-16 x 7/8 sq-hd ov-pt set

1шт.

6

20885R1

WASHER

1-5/32 x 2 x 16 ga

1шт.

7

454154R1

BUSHING

2шт.

8

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self tapping str lub

1шт.

9

20825R1

WASHER

25/32 x 2 x 11 ga

1шт.

10

465232R1

RUBBER WASHER

rubber axle

1шт.

11

465231R1

CUP WASHER

cupped axle

1шт.

12

69442D

NUT

3/4-10 slt hex. jam

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

13

485377R91

PIPE ASSY, gauge wheel

1шт.

18444R1

NUT,3/4"-10, GB

3/4-10 nylon insert

1шт.

21386R1

BOLT,3/4" x 4 1/4", Gr 8

SCREW, 3/4-10 x 4-1/4 C-Z hex-hd cap type 4

1шт.

21385R1

BOLT,3/4" x 5 1/2", Gr 8

SCREW, 3/4-10 x 5-1/2 type 4 C-Z hex-hd cap

1шт.

14

471112R91

BRACKET ASSY, gauge wheel

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

15

522245R1

BOLT, 1/2 x 5-3/4 sq-nk crg

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
