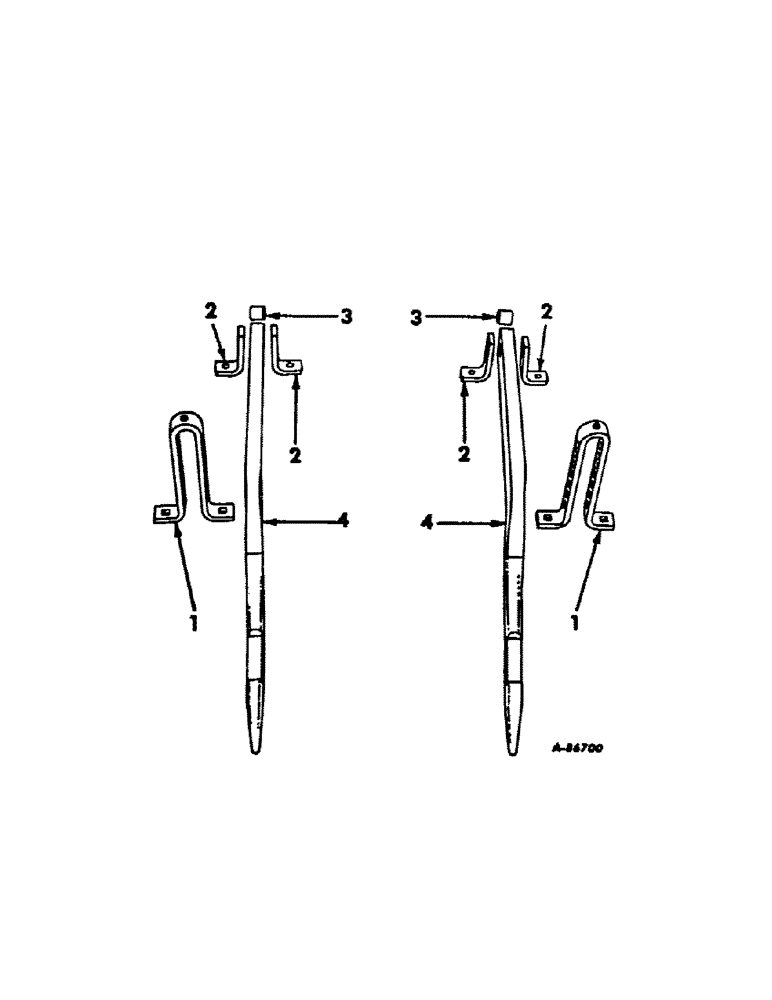

Запчасти Case IH 411 (S-10[A]) - COUPLING BEAM, 1968 TO 1972

1

489174R1

BRACKET, coupling beam adj

2шт.

C351

AXLE PIN

PIN, 1/2 x 2-3/8 std-hd

6шт.

520175R1

CLIP

PIN, quick attachable cot.

6шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 C-Z hex-hd cap

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

489176R1

ANGLE, coupling beam

4шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4-10 x 3-1/4 C-Z hex-hd cap

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

489175R1

SPACER, coupling beam

2шт.

4

489172R1

BEAM ASSY, coupling

2шт.
