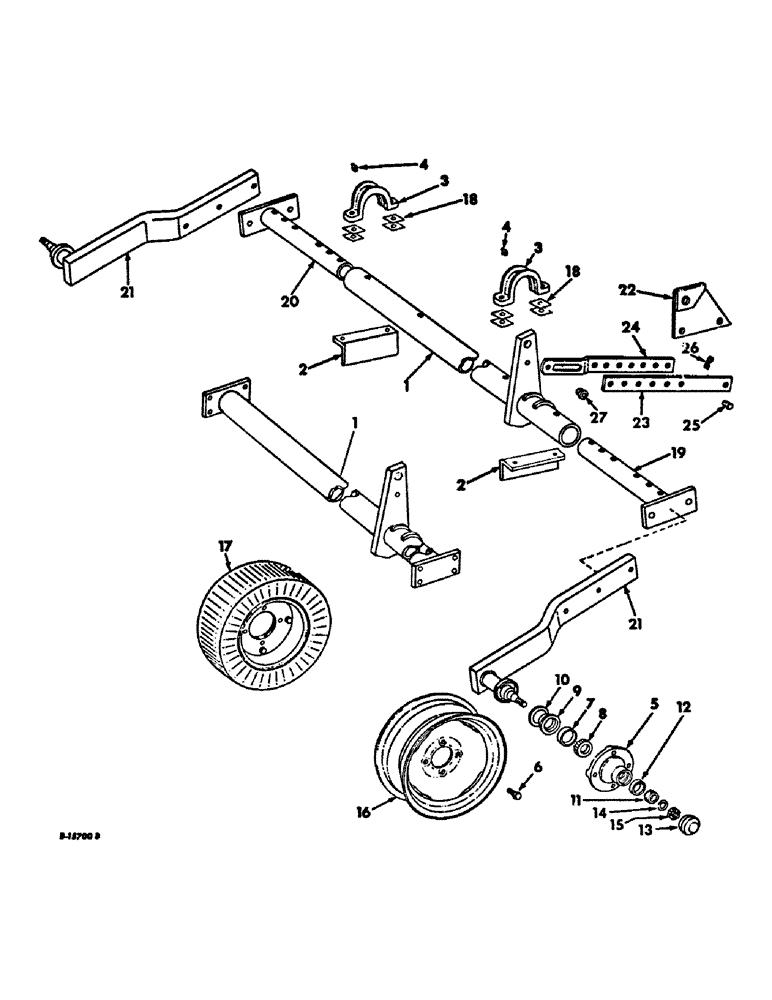

Запчасти Case IH 411 (S-08) - AXLE WHEELS AND RELATED PARTS

1

485358R1

AXLE ASSY, adjustable

1шт.

1

547478R1

AXLE ASSY, now adjustable

1шт.

21362R1

SCREW, 5/8-11 x 4-1/4 type 4 C-Z hex-hd cap

4шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

2

469280R2

BRACKET, axle brg

2шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 C-Z hex-hd mach

4шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cd-pltd nylon insert

4шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap type 8

4шт.

20033R1

LOCK NUT

NUT, 5/8-11 CDP nylon insert

4шт.

3

469433R1

CLAMP

center axle plate

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping str lub

2шт.

5

465492R2

HUB

wheel

2шт.

6

663000R1

BOLT,1/2" - 20 x 1 1/32"

wheel

8шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

8

651817R1

BEARING CUP

BEARING, wheel hub inner cup

2шт.

9

472633R1

BUSHING

SLEEVE, oil seal wear

2шт.

10

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

13

651194R1

CAP

CUP, wheel hub

2шт.

14

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

15

69442D

NUT

3/4 hex. slt jam

1шт.

16

463036R1

WHEEL (STEERING)

WHEEL ASSY, disc type 14 x 5KB rim for 7.50 x 14 or 8.00 x 14 tire

2шт.

16

662994R91

WHEEL

ASSY, disc type 15 x 4J rim for 5.90 x 15, 6.40 x 15 or 6.70 x 15 tire

2шт.

17

469413R91

RIM W/PUNCTURE PROOF TIRE, 6.00 x 9

2шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2-20 7/8 C-Z hex-hd cap

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

18

469407R1

BAR

SHIM, axle clamp, or as required

8шт.

19

489189R1

TUBE ASSY, axle extension RH

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 type 4 C-Z hex-hd cap

2шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

20

489191R1

TUBE ASSY, axle extension LH

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 type 4 C-Z hex-hd cap

2шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

21

485363R1

SPINDLE ASSY, wheel, Serial Range: 1968-1972

2шт.

21

547480R1

SPINDLE ASSY, wheel, 1972 and since

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

22

469281R1

BRACKET, lift

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

23

476941R1

BAR, transport lock lower, Serial Range: 1968-1970

1шт.

24

476942R1

BAR, transport lock upper, 1968 t0 1970

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 X 2 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25

5699S

PIN, 1/2 x 1-3/16 std-hd, Serial Range: 1968-1970

1шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x .064

1шт.

26

520175R1

CLIP

PIN, quick attachable cot., Serial Range: 1968-1970

1шт.

27

476943R1

SPACER, Serial Range: 1968-1970

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
