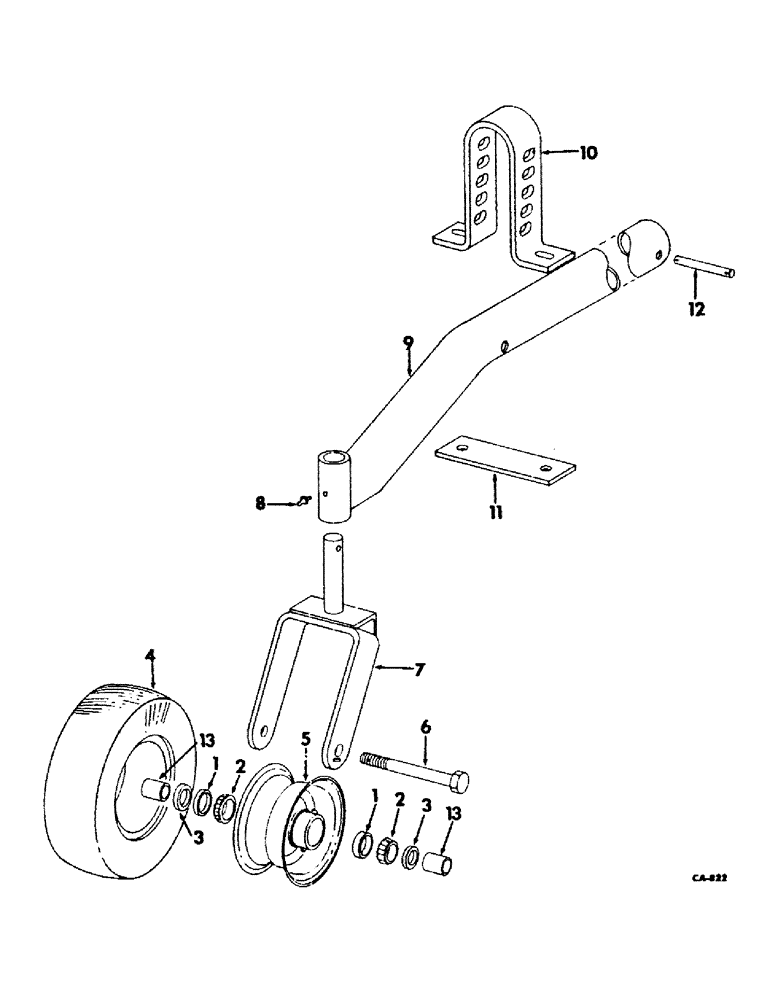

Запчасти Case IH 111 (T-4) - WHEELS

1

651814R1

BEARING CUP

BEARING, cup

2шт.

2

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, cone

2шт.

2

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

3

542217R91

OIL SEAL,28.57mm ID x 45.34mm OD x 11.91mm Thk

SEAL, oil

2шт.

4

542181R1

TYRE/TIRE

TIRE

1шт.

5

542180R1

WHEEL (STEERING)

WHEEL ASSY

1шт.

120376

NUT,5/16"-18, G5

6шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

6шт.

20824R1

WASHER

11/32 x 1-1/2 x 16 ga C-Z

6шт.

6

542194R1

BOLT

bearing

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex.

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

16066R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

7

542170R91

FORK W/KEY, 475642R1 assy

1шт.

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 x 11/16 sq parallel

1шт.

119201

PIN,3/8" x 2"

Split (Cotter), 3/8" x 2"

1шт.

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

1-9/32 x 2-1/2 x 10 ga

2шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive-type lub

1шт.

9

542164R1

SUPPORT

1шт.

10

542191R1

BRACKET, adjusting

1шт.

443329

NUT, 5/8-11 hex. lock type hl

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 prevailing torque hex. lock

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

2шт.

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

SCREW, 5/8-11 x 5 znd hex-hd cap

1шт.

271782R1

WASHER, 21/32 x 1-1/2 x 16 ga C-Z

4шт.

11

542192R1

PLATE, support

1шт.

12

542193R1

PIN, support mounting

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

13

542174R1

BUSHING

SPACER

2шт.
