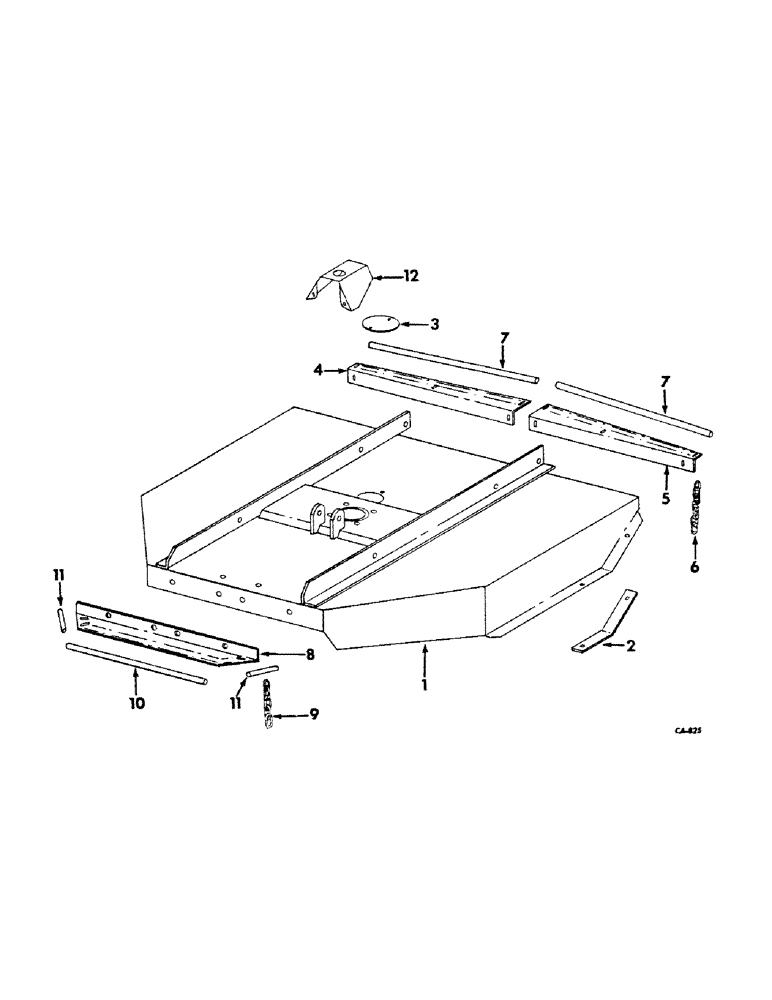

Запчасти Case IH 111 (T-3) - PLATFORM AND CHAIN GUARD

1

542184R11

PLATFORM W/PRODUCT GRAPHIC

1шт.

2

542195R1

SUPPORT

RUNNER

2шт.

15564R1

BOLT

7/16-14 x 1-1/4 no. 3 plow

4шт.

9413954

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque hex. lock

4шт.

3

542176R1

PLATE, cover

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 prevailing torque hex. lock

1шт.

4

542196R1

ANGLE, chain guard front LH

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-24 znd hex.

3шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga C-Z

3шт.

5

542197R1

ANGLE, chain guard front RH

1шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

3шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga C-Z

3шт.

6

542200R1

CHAIN, front, 7 links

42шт.

7

542169R1

ROD, front

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

8

542172R1

ANGLE, chain guard rear

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga C-Z

2шт.

9

542199R1

CHAIN, rear, 5 links, 21

1шт.

10

542168R1

ROD, rear center

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

11

542167R1

ROD, rear outer

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

12

542185R11

SHIELD W/PRODUCT GRAPHIC

1шт.
