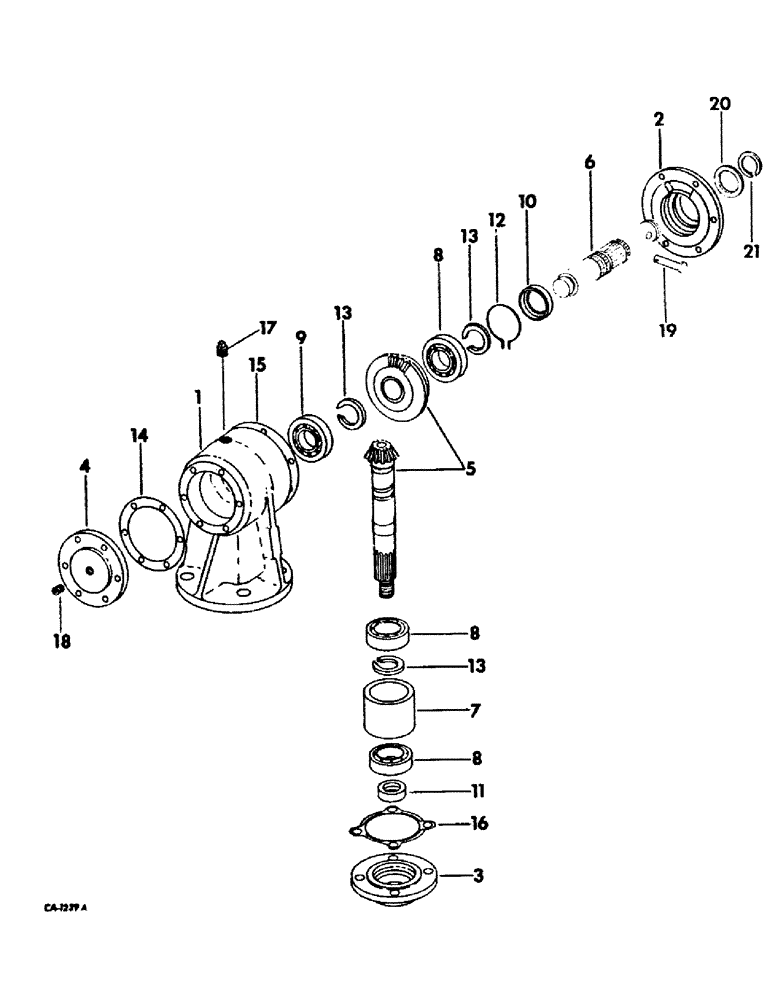

Запчасти Case IH 111 (T-7) - GEAR BOX

1

545191R91

HOUSING ASSY, main, includes ref no. 14

1шт.

9413970

LOCK NUT,5/8"-11, GB

NUT, 5/8-18 prevailing torque hex. lock

4шт.

223815R1

SCREW, 5/8-18 x 3 type 8 hex-hd cap

4шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

4шт.

2

544378R1

HOUSING, side

1шт.

NLS

NO LONGER SERVICED

6шт.

3

544379R1

CAP, output

1шт.

17479R1

SCREW, 3/8-16 x 1-1/2 hex-hd cap drilled

4шт.

4

544380R1

CAP, blind

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

5

544381R91

GEAR WHEEL

GEAR SET

1шт.

6

544384R1

SHAFT, input

1шт.

7

544385R1

SPACER

1шт.

8

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

3шт.

9

474910R91

BEARING

ball

1шт.

10

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

oil

1шт.

11

544386R91

OIL SEAL

oil

1шт.

12

544387R1

RING

retainer

1шт.

13

544388R1

RING

retainer

3шт.

14

544389R1

SHIM, .007, used or as required

1шт.

14

544390R1

SHIM, .010, used or as required

1шт.

14

544391R1

SHIM, .015, used or as required

1шт.

15

544392R1

SHIM, .005, used or as required

1шт.

15

544393R1

SHIM, .007, used or as required

1шт.

15

544394R1

SHIM, .020, used or as required

1шт.

16

544395R1

SHIM, .005, used or as required

1шт.

16

544396R1

SHIM, .007, used or as required

1шт.

16

544397R1

SHIM

.020, used or as required

1шт.

17

444588

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto. sq-hd pipe

1шт.

18

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

19

540392R1

PIN

shear

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

20

542163R1

WASHER, drive shaft retaining

1шт.

21

659380R1

SNAP RING,#137, Ext

Ring, Snap, , drive shaft #137, Ext

1шт.
