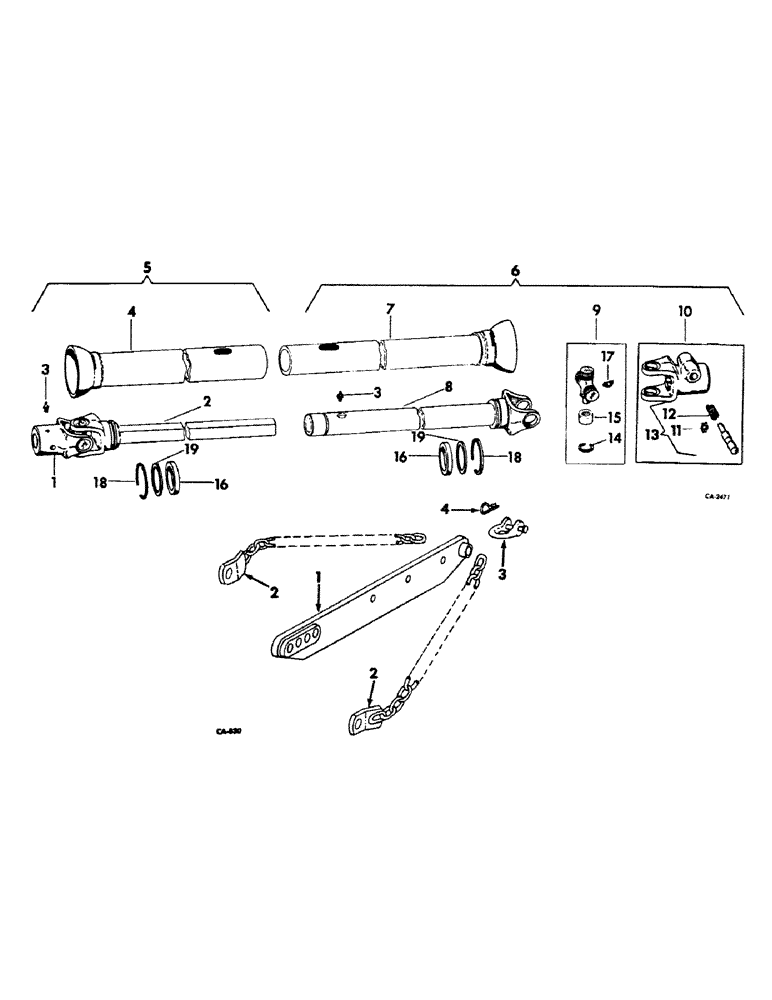

Запчасти Case IH 111 (T-6) - POWER DRIVE EQUIPMENT

1

542949R1

YOKE

1шт.

540392R1

PIN

shear

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

2

542579R1

SHAFT

YOKE, shaft

1шт.

3

102467H

FITTING

1/4-28 NF 2 str lub

3шт.

4

542578R1

SHIELD, inner

1шт.

5

542577R91

JOINT ASSY, rear half

1шт.

6

542574R91

JOINT ASSY, front half

1шт.

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

542163R1

WASHER, special

1шт.

7

542575R1

SHIELD

outer

1шт.

8

542576R1

YOKE

tube sleeve

1шт.

9

200464C91

PACKAGE

CROSS ASSY, center

2шт.

10

568100R92

YOKE

ASSY, qd

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

13

455346R21

PIN

ASSY, locking

1шт.

14

576420R1

RING

snap

8шт.

15

200528C91

BEARING ASSY

BEARING, needle cup

8шт.

16

461346R1

BEARING

nylon

2шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

18

613436R1

CLAMP

RING, snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.
