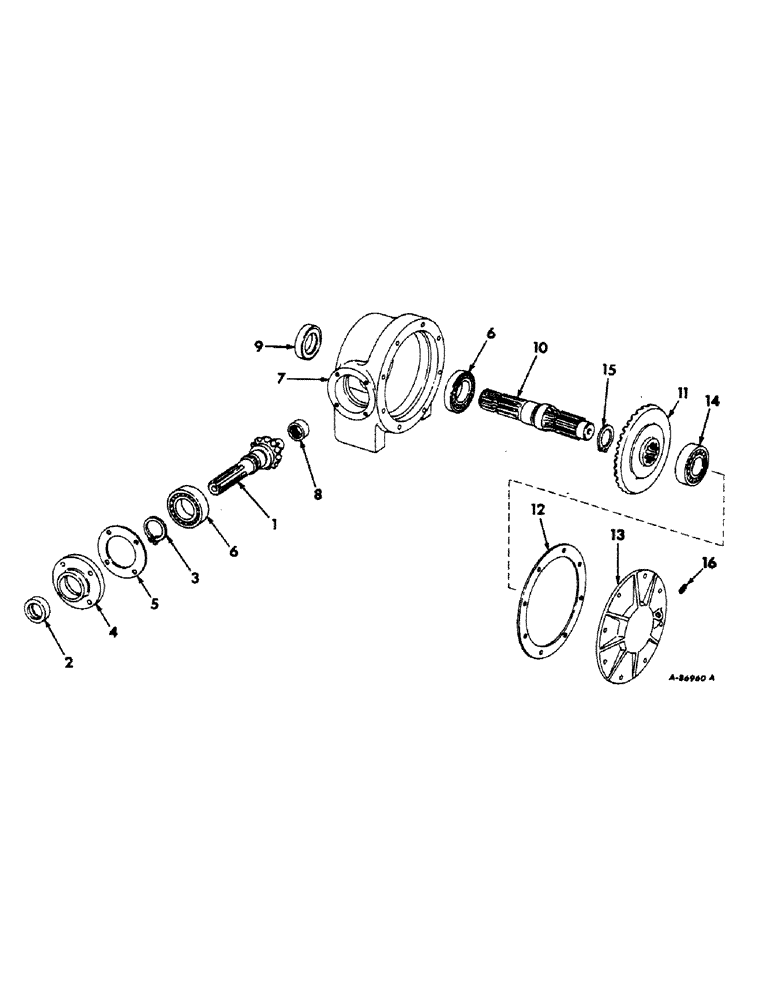

Запчасти Case IH 70 (H-7) - GEAR BOX

484832R91

BOX ASSY, drive gear

1шт.

1

485658R1

PINION, output - 13T

1шт.

2

20108D

SEAL

oil

1шт.

3

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

4

461641R1

CAP, bearing retainer

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

461638R1

GASKET

1шт.

6

20308D

BEARING, BALL,1.378" ID x 0.6693"

BEARING ASSY, ball

2шт.

7

485655R1

HOUSING, gear

1шт.

8

485757R91

BEARING

output pinion roller

1шт.

9

478522R91

SEAL, oil, will work for 485758R91

1шт.

10

485656R1

SHAFT, input

1шт.

11

485657R1

GEAR, input - 38

1шт.

12

485759R1

SHIM .007

1шт.

12

485760R1

SHIM .015

1шт.

13

485654R1

CAP, retaining

1шт.

NLS

NO LONGER SERVICED

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

14

27866D

BEARING

ball

1шт.

15

327370R1

RING

retaining

1шт.

16

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.
