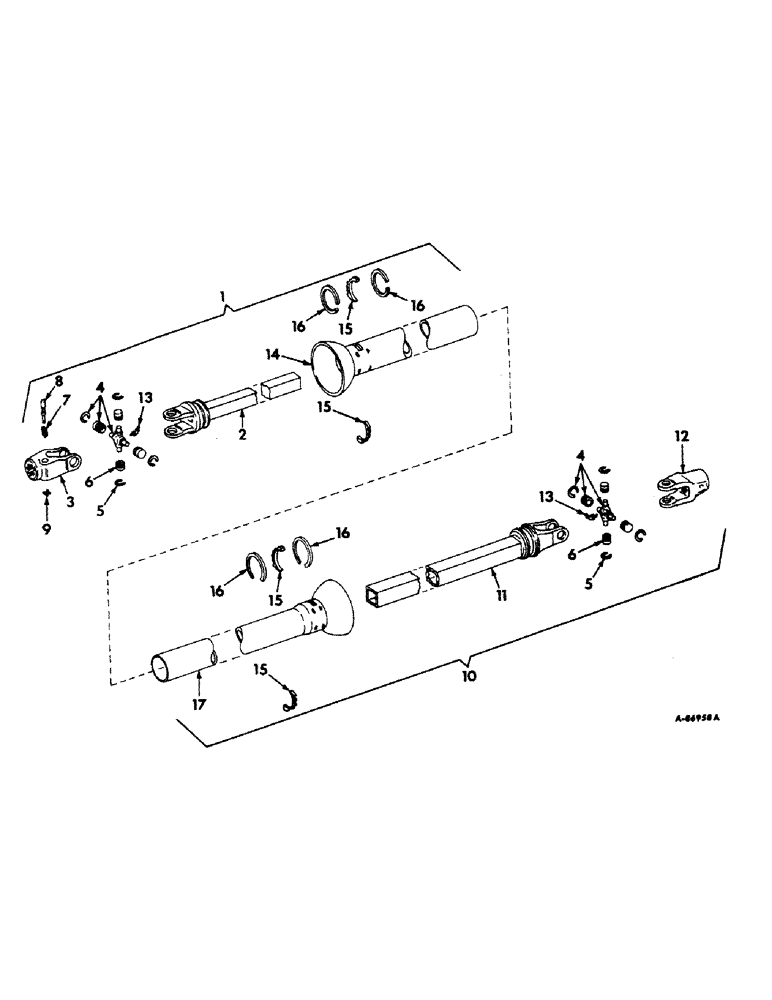

Запчасти Case IH 70 (H-6) - DOUBLE UNIVERSAL PTO DRIVE

1

484847R91

JOINT ASSY, single universal, front half - tractor end chain belt 120 series

1шт.

1

484859R92

JOINT ASSY, single universal, front half - tractor end chain belt 120 series

1шт.

2

484903R1

YOKE W/SHAFT

1шт.

3

459463R91

YOKE

ASSY, quick detachable, replaces 484900R91

1шт.

4

480486R91

CROSS

KIT, center cross

2шт.

5

606177R1

SNAP RING

RING, snap

8шт.

6

480492R91

BEARING ASSY,0.8145" ID x 1.065" OD x 0.64"

ASSY, cup

8шт.

7

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

8

455346R21

PIN

ASSY, locking

1шт.

9

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

locking pin X

1шт.

10

484848R91

JOINT ASSY, single universal rear half - implement end chain belt 120 series

1шт.

10

484860R93

JOINT

ASSY, single universal shielded rear half, implement end chain belt 120 series

1шт.

11

484905R3

YOKE

W/TUBE

1шт.

12

484901R1

YOKE

1шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 ptf 65 deg angle lub

2шт.

14

484904R2

SHIELD, outer, used with shielded universal, 484859R92

1шт.

15

668336R1

NYLON BEARING,0.317"

nylon, used with shielded universal, 484859R92 & 484860R93

1шт.

16

668337R1

RING

retainer, used with shielded universal 484859R92 & 484860R93

1шт.

17

484906R2

SHIELD, inner, used with shielded universal 484860R93

1шт.
