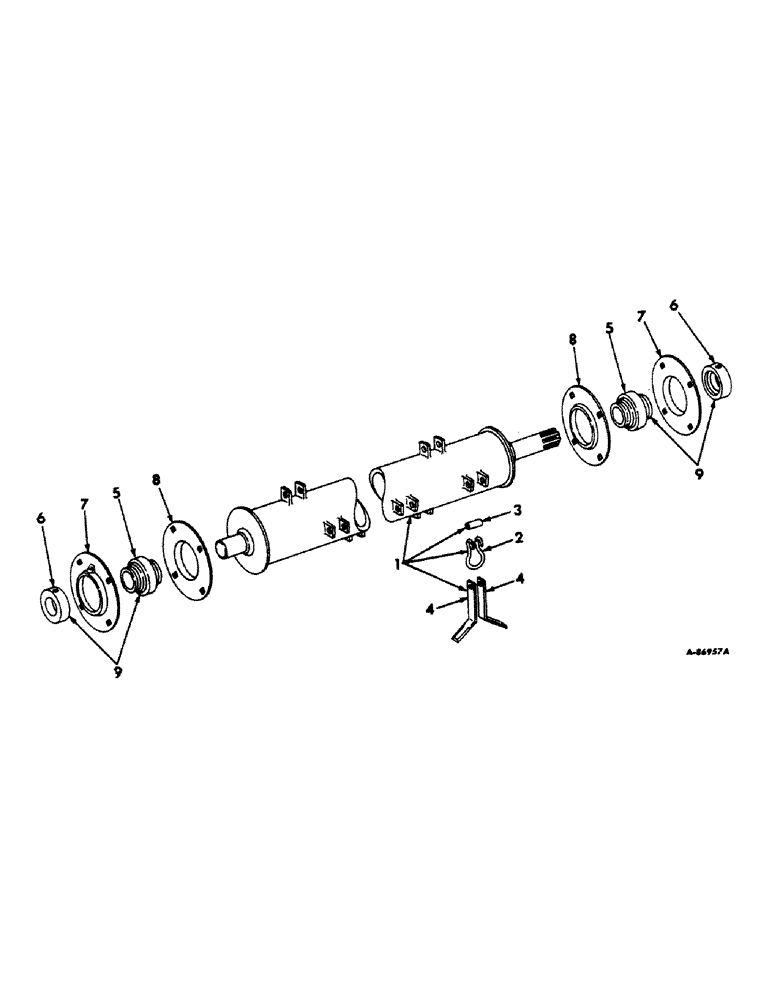

Запчасти Case IH 70 (H-5) - ROTOR W/KNIVES AND CONNECTIONS

1

486947R91

TUBE W/KNIVES, rotor

1шт.

For 5 foot model 70 industrial mower

1шт.

1

486948R91

TUBE W/KNIVES, rotor

1шт.

For 7 foot model 70 industrial mower

1шт.

103411

SPLIT (COTTER), 3/16" x 2"

1шт.

2

484831R1

CLEVIS

pivot link

32шт.

For 5 foot model 70 industrial mower

1шт.

2

484831R1

CLEVIS

pivot link

44шт.

For 7 foot model 70 industrial mower

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 C-Z hex-hd cap

64шт.

For 5 foot model 70 industrial mower

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

SCREW, 5/16-18 x 2 C-Z hex-hd cap

44шт.

For 7 foot model 70 industrial mower

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 C-Z lock hex.

32шт.

For 5 foot model 70 industrial mower

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 C-Z lock hex.

44шт.

For 7 foot model 70 industrial mower

1шт.

3

484829R1

BUSHING

32шт.

For 5 foot model 70 industrial mower

1шт.

3

484829R1

BUSHING

44шт.

For 7 foot model 70 industrial mower

1шт.

4

484830R1

HALF BLADE

KNIFE, rotor

64шт.

For 5 foot model 70 industrial mower

1шт.

4

484830R1

HALF BLADE

KNIFE, rotor

88шт.

For 7 foot model 70 industrial mower

1шт.

5

478038R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

ASSY, rotor ball

2шт.

6

455112R11

COLLAR

W/SET SCREW, ball brg

2шт.

7

488454R1

FLANGED BEARING

W/FITTING, rotor brg

2шт.

8

488455R1

FLANGE

rotor brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

9

478027R91

BEARING

W/COLLAR, rotor ball

2шт.
