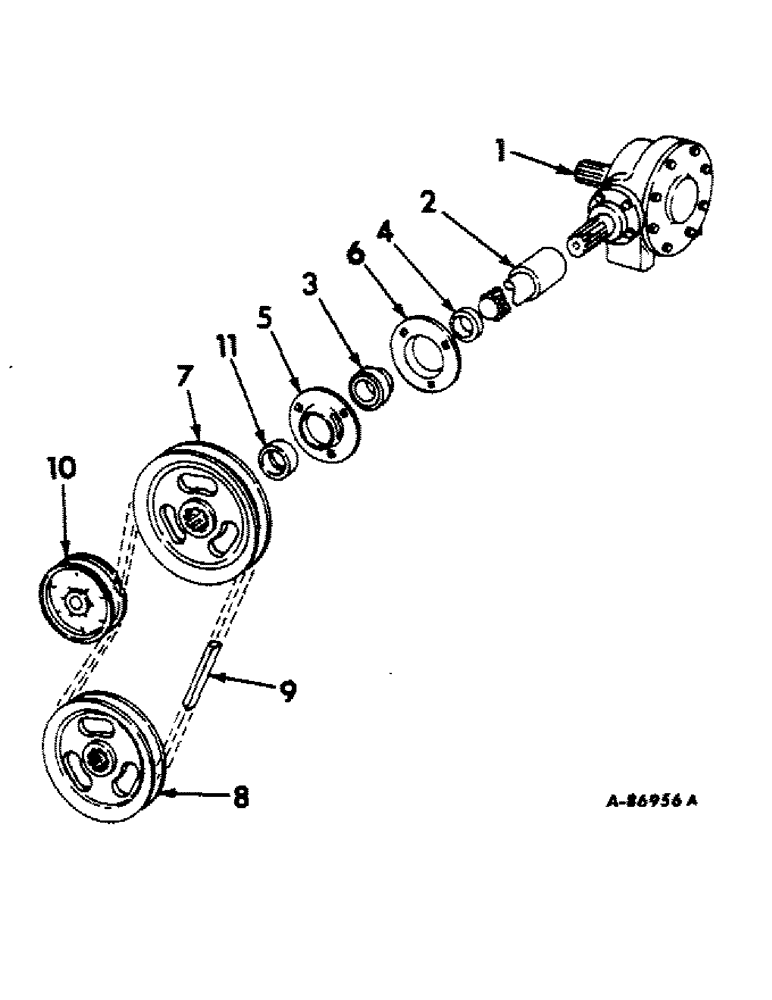

Запчасти Case IH 70 (H-4) - GEAR BOX AND MOWER DRIVE

1

484832R91

BOX ASSY, drive gear, for components see list of parts under details of gear box

1шт.

2

484833R2

SHAFT ASSY, drive coupling

1шт.

For 7 foot model 70 industrial mower

1шт.

2

484836R1

SHAFT ASSY, drive coupling

1шт.

For 5 foot model 70 industrial mower

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

3

473097R92

BEARING ASSY,1.2505" ID x 72 mm OD x 1"

BEARING ASSY, coupling shaft ball

1шт.

4

455104R11

COLLAR

W/SET SCREW, brg locking

1шт.

5

473092R1

FLANGED BEARING

coupling shaft brg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

6

473091R91

FLANGE

W/FITTING, coupling shaft brg

1шт.

7

484838R2

PULLEY, drive belt

1шт.

8

484839R2

PULLEY, driven belt

1шт.

9

486543R2

BELT

Drive

1шт.

10

564745R91

PULLEY

IDLER ASSY, drive belt

1шт.

11

638169R1

SPACER, cross drive brg, 1967 and since

1шт.
