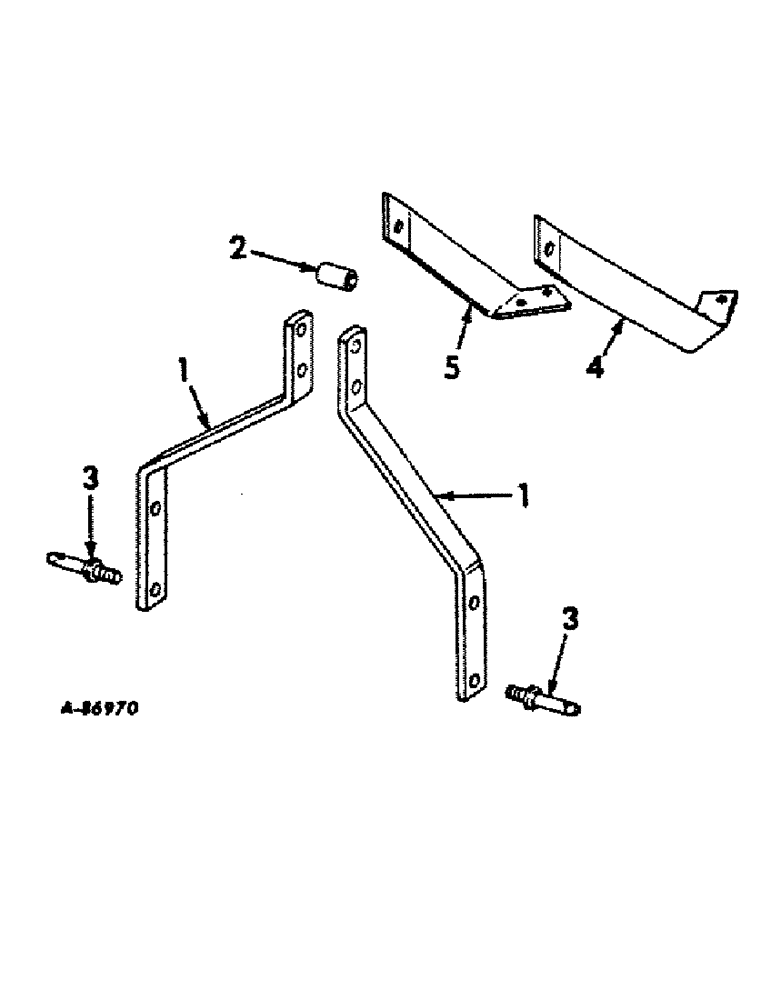

Запчасти Case IH 70 (H-3) - HITCH AND HITCH FLOAT

1

484849R1

BRACE, upper link

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

7/8 x 2 type 5 , Course threads

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

280954

NUT,3/4"-10, G5

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

2

567731R1

BUSHING

1шт.

3

525921R1

STUD

PIN, hitch

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex.

2шт.

138566

WASHER,Int Tooth, 7/8"

7/8 C-Z int-tooth lock

2шт.

4

484850R1

BRACE, upper hitch LH

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8 x 1-1/4 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

484851R1

BRACE, upper hitch RH

1шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/4 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
