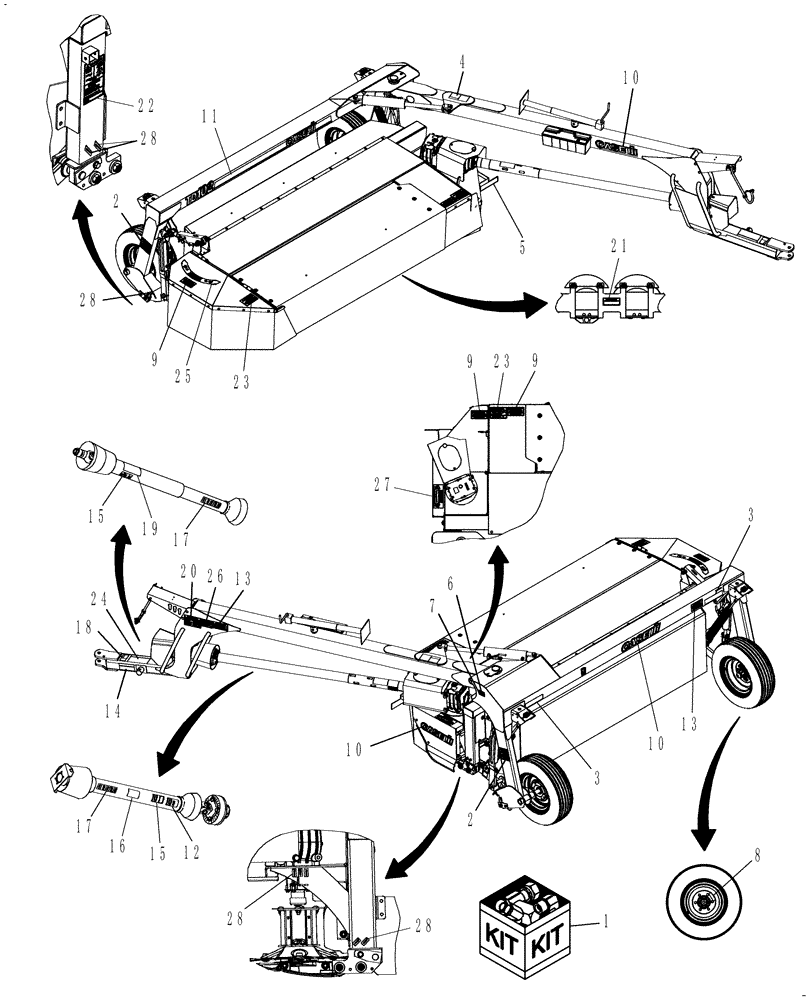

Запчасти Case IH TD102 (08.03) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87473030

DECAL KIT

Includes: Ref.s 2 Thru 5 & 8 Thru 31

1шт.

2

87722933

DANGER DECAL

DANGER: Crush Hazard - English

2шт.

2

87722934

DANGER DECAL

DANGER: Crush Hazard - French

2шт.

2

87722935

DANGER DECAL

DANGER: Crush Hazard - Spanish

2шт.

3

86547781

REFLECTOR,RED

Tape, Red Retroreflective

2шт.

4

87037788

WARNING DECAL

1шт.

5

86547782

REFLECTOR,YELLOW

Tape, Yellow Retro Reflective

1шт.

6

NS

NOT SERVICED

PIN Plate

1шт.

7

87522

DRIVE SCREW,Rd Hd, #4 x 1/4", U Type

2шт.

8

183155

DECAL

Torque - English

2шт.

8

602232

DECAL

Torque - French

2шт.

8

9804237

DECAL

Torque - Spanish

2шт.

9

86611825

WARNING DECAL

Slippery Surface - English

3шт.

9

86614084

WARNING DECAL

Slippery Surface - French

3шт.

9

86624655

WARNING DECAL

Slippery Surface - Spanish

3шт.

10

87622972

DECAL

Case IH

3шт.

11

87744188

DECAL

TD102 Case IH

1шт.

12

87042237

DECAL

DANGER: Maximum Operating Speed 540 RPM

1шт.

13

86624775

WARNING DECAL

Set Machine To Clear Obstructions - English

2шт.

13

86625172

WARNING DECAL

Set Machine To Clear Obstructions - French

2шт.

13

86625173

WARNING DECAL

Set Machine To Clear Obstructions - Spanish

2шт.

14

851483

DECAL

ATTENTION: Store Jack On Top Of Tongue - English

1шт.

14

851484

DECAL

ATTENTION: Store Jack On Top Of Tongue - French

1шт.

14

86528615

DECAL

ATTENTION: Store Jack On Top Of Tongue - Spanish

1шт.

15

849471

DANGER DECAL

Rotating Driveline - English

2шт.

15

849482

DANGER DECAL

Rotating Driveline, French

2шт.

15

9801260

DANGER DECAL

Rotating Driveline - Spanish

2шт.

16

86593134

DECAL

Grease per Hours Shown - English

1шт.

16

86593136

DECAL

Grease per Hours Shown - French

1шт.

16

86568229

DECAL

Grease per Hours Shown - Spanish

1шт.

17

849472

DANGER DECAL

Shield Missing, English

2шт.

17

849483

DANGER DECAL

Shield Missing - French

2шт.

17

9801256

DANGER DECAL

Shield Missing - Spanish

2шт.

18

87041061

WARNING DECAL

PTO Shielding - English

1шт.

18

87042013

DECAL

WARNING - PTO Shielding - French

1шт.

18

87042014

DECAL

WARNING - PTO Shielding - Spanish

1шт.

19

86520249

DECAL

Lubrication

1шт.

20

86622073

WARNING DECAL

Before Operating - English

1шт.

20

86622074

WARNING DECAL

Before Operating - French

1шт.

20

86622075

WARNING DECAL

Before Operating - Spanish

1шт.

21

166127

DECAL

ATTENTION: Do Not Use This Member For Lifting - English

1шт.

21

601662

DECAL

ATTENTION: Do Not Use This Member For Lifting - French

1шт.

21

9804246

DECAL

ATTENTION: Do Not Use This Member For Lifting - Spanish

1шт.

22

84135369

DECAL

DANGER: Stand Clear - English

1шт.

22

84135375

DECAL

DANGER: Stand Clear - French

1шт.

22

84135378

DECAL

DANGER: Stand Clear - Spanish

1шт.

23

86628571

WARNING DECAL

Stand Clear - English

2шт.

23

86629518

WARNING DECAL

Stand Clear - French

2шт.

23

9804253

DECAL

WARNING: Stand Clear - Spanish

2шт.

24

87057017

DECAL

ATTENTION: Do Not Operate PTO In Transport Position - English

1шт.

24

87057018

DECAL

ATTENTION: Do Not Operate PTO In Transport Position - French

1шт.

24

87057019

DECAL

ATTENTION: Do Not Operate PTO In Transport Position - Spanish

1шт.

25

80772110

WARNING DECAL

Knife-Tip Path - English

1шт.

25

791403

WARNING DECAL

Knife-Tip Path - French

1шт.

26

87041060

WARNING DECAL

Transport/Towing - English

1шт.

26

87042011

WARNING DECAL

Transport/Towing - French

1шт.

26

87042012

WARNING DECAL

Transport/Towing - Spanish

1шт.

27

87744190

DECAL

WARNING: Cutting Hazard, Knife-Tip Path - English

1шт.

27

87744192

DECAL

WARNING: Cutting Hazard, Knife-Tip Path - French

1шт.

27

87744191

DECAL

WARNING: Cutting Hazard, Knife-Tip Path - Spanish

1шт.

28

165109

DECAL

Lube Fitting

10шт.
