Запчасти Case IH TD102 (14.04) - TOP CAP, SHOCK HUB (58) - ATTACHMENTS/HEADERS

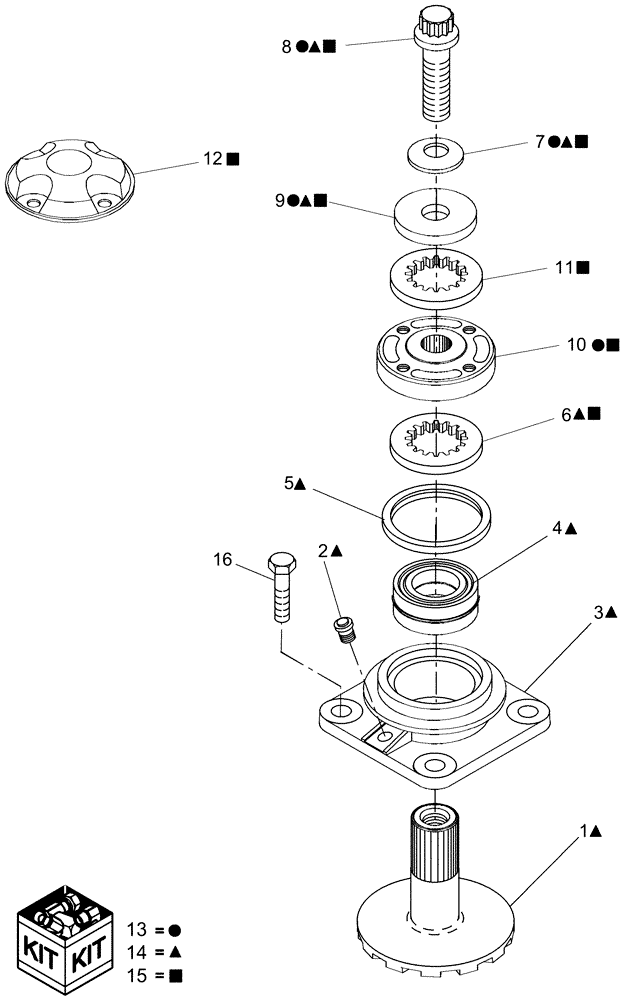

Схема запчастей Case IH TD102 - (14.04) - TOP CAP, SHOCK HUB (58) - ATTACHMENTS/HEADERS
12
1
4
2
9
5
15
6
14
11
10
13
3
16
8
7

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Gear, 25T

1шт.

2

572820

BREATHER

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing

1шт.

5

9849587

OIL SEAL,50.72mm ID x 63.73mm OD x 6.73mm Thk

1шт.

6

87376403

SEAL

Hub

1шт.

7

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

1шт.

8

87579665

BOLT,5/8" - 11 x 1-3/4"

Cap, 12 Pt, Flg Hd, 5/8"-11 x 1 3/4", Locking Patch

1шт.

Can Be Used W/Either Shear Hub Or Non-Shear Hub Top Caps

1шт.

9

574245

WASHER,16.76mm ID x 50.8mm OD x 6.35mm Thk

1шт.

10

NSS

NOT SOLD SEPARAT

Hub, Shock

1шт.

11

87376405

LOCK WASHER,28.68mm ID x 56mm OD x 6.35mm Thk

Splined

1шт.

12

87581143

CAP

1шт.

13

87580643

REPAIR KIT

Shock Hub

1шт.

14

87753842

REPAIR KIT

Kit, Repair, Shock Hub

1шт.

15

87602273

REPAIR KIT

Shock Protect Retrofit

1шт.

16

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

Not Included in Kit

4шт.

Выбрано товаров: 17
